Commercial Insulated Sandwich Doors
Insulated Sandwich Doors deliver strength, style, and energy efficiency. Built to perform in any environment, they add durability, value, and dependable protection.
Get A Free Estimate NowINSULATED SANDWICH DOORS

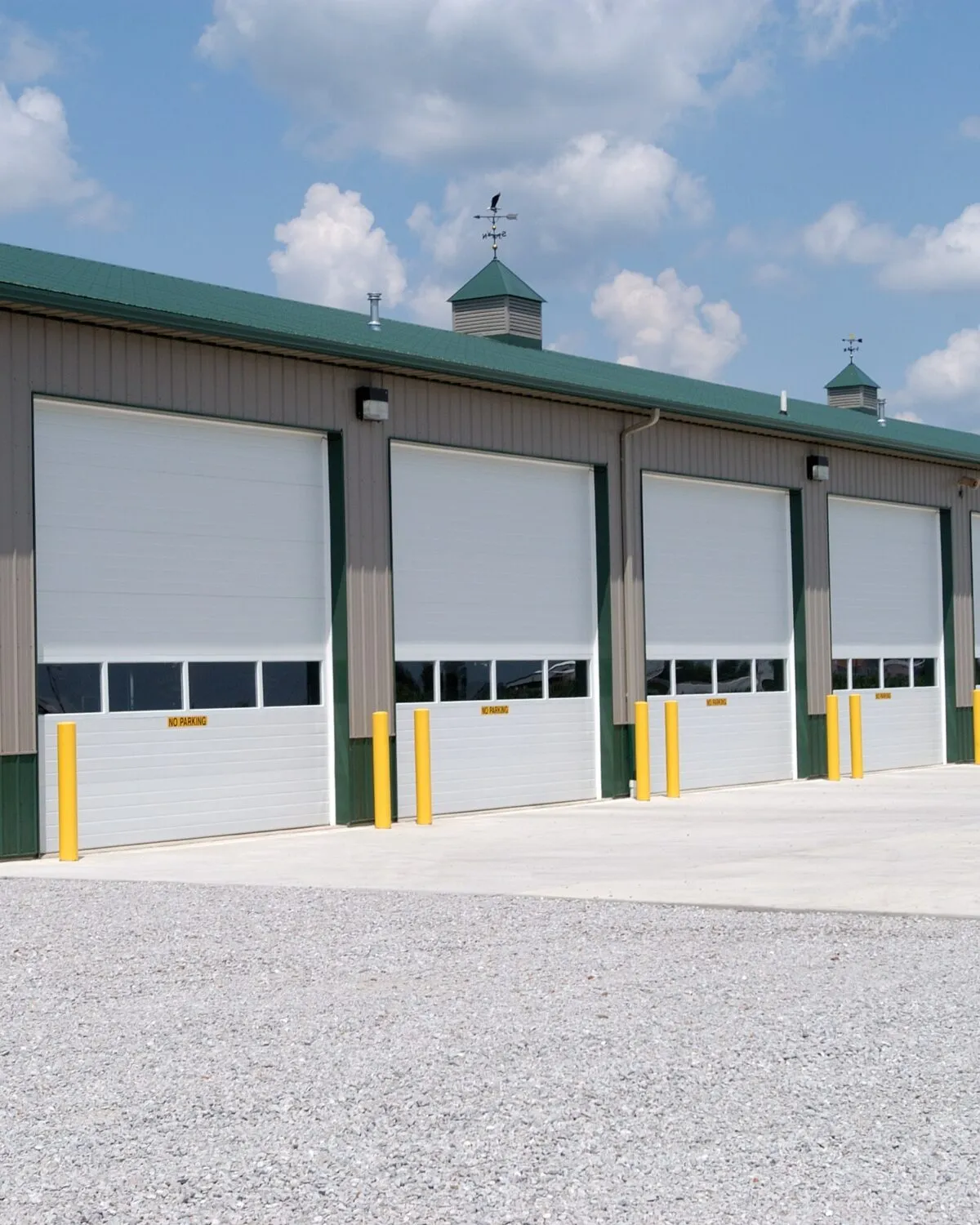

Regardless of your specific application, C.H.I. offers a premium insulated door product guaranteed to deliver years of dependable operation. Our micro-grooved sandwich models are constructed in a variety of gauges and are available in both polyurethane and polystyrene insulation options for those applications that demand the best in thermal efficiency and value. And, if you're looking to enhance your buildings aesthetics, our sandwich doors are available powder-coated in over 182 different colors!
CHI Model 3206
CHI Model 3206 represents a modern take on garage door design, combining sleek aesthetics with durable construction. Modeled after the clean style of the 3295 Series full-view doors, this aluminum and glass garage door adds a contemporary edge to both modern and traditional homes. Whether you're building new or upgrading an existing door, this model offers both beauty and functionality.
Modern, Full-View Design
- Those that are currently building or want to upgrade their current door, CHI has developed a cutting-edge, mod glass garage door
- The clean style of 3295 Series full-view garage doors with glass from C.H.I. complements modern, industrial-build houses
- The non-traditional look of the aluminum and glass offers smooth lines, giving it a commercial charm
- However, its simplicity also presents nicely and can add value to more traditional homes
Glass Options & Light Control
- Glass comes in either 1/8″ non-insulated or 7/16″ insulated for better energy efficiency
- The 1/8″ glass is offered as plain, tinted or frosted to control light and protect privacy
- Glass replacement is effortless with removable inside retainers
Durable Construction & Weather Protection
- Exceptional weather seal is provided by tongue-and-groove section joints
- The aluminum panels offer 3/8″ insulation
- Standard colors for the aluminum are clear anodized or white, though there are many colors available for custom order using Tiger Drylac Powder Coatings
- Solid construction with hidden through-bolt assembly, 4″ top and bottom rail and 2″ intermediate rails, and sleek 2″ aluminum stiles offer the sturdy strength needed for everyday use
Hardware & Security Features
- Massive 14 gauge hinges and 10 ball rollers confirm powerful, steady service
- The door features an optional inside, side lock and optional header and jamb seals for further weather-proofing
CHI Model 3212
This sectional garage door is designed with exceptional insulation, tight weather sealing, and heavy-duty construction for lasting performance. Its sleek micro-groove design, versatile mounting options, and durable hardware make it ideal for both commercial and residential applications. Explore the key features below:
Panel Design & Insulation
- Features four evenly spaced micro-grooves that run horizontally across each section
- 2" thick sections are foamed in place with polyurethane for superior R-value
- Thermally-broken to eliminate thermal convection
- Gasket seal between sections provide for an extremely tight weatherseal
- Foamed in place CFC free polyurethane core
- R-value: 17.54
- Available in white
Structural Strength & Weather Protection
- Concealed steel back-up plates run from top to bottom of each section for secure hardware attachment
- Bottom "U" type astragal is a standard feature
- Tracks are 2" or 3", as specified
- Available in bracket mount, angle mount, clip angle mount, 12" radius, 15" radius, high lift, vertical lift, roof pitch, or dual track low headroom
Heavy-Duty Hardware Package
- Package includes 14 gauge or 11 gauge hinges, as specified
- 2" or 3" short-stem or long-stem ball bearing rollers
- Heavy-duty adjustable top roller brackets
Spring & Counterbalance System
- Torsion springs are helically wound with stress relieved, oil-tempered wire
- Springs are individually calibrated for each door
- Counter-balance torsion shafts are galvanized for rust resistance
- High cycle spring options may be specified
CHI Model 3216
LiftMaster's KPR2000 is a feature-rich keypad and proximity card reader access controller that is simple to install and looks great, making it an excellent choice for both Residential and Commercial applications. Supports a maximum of 2,000 users in multiple access configurations. Supports HID 26-bit and 30-bit Wiegand proximity card formats. Designed for outdoor environments with a sealed, weather proof design allowing you to easily mount anywhere. Provides stand alone or pass-thru operation Latch Mode allows you to hold open a door or gate for an extended period of time. Includes Rapid Programming and Block Enrollment capability, "Add" and "Delete" program cards. Programmable Output Relay with adjustable contact time appropriate for Gate Operator, Commercial Door Operator, Door Strike or Solenoid Lock. Capable of networking two KPR2000s, PPWR to the KPR2000 or to most Access Control Systems.
CHI Model 3217
The Model ASSD is a swift opening and closing motorized strip-door. Strip-door operation is easily adjusted to suit traffic speed. Features May be mounted inside the doorway or within the door jamb Recommended for doorways subjected to infiltration due to temperature differences Fully-lapped fixed strips retain 95% effectiveness Clear plastic strips significantly outlast push-through strips For negative pressure applications under 1 MPH flow-through velocity Can be used between 2 freezers without requiring any heat.
CHI Model 3236
26-Gauge Model 3236 is a 3" thermally-broken insulated steel sandwich door designed for strength, energy efficiency, and reliable performance. Its durable construction, superior insulation, and versatile mounting options make it ideal for a wide range of commercial and industrial applications. Explore the key features below:
Panel Design & Insulation
- Sections are 3" thick
- Sections include a thermal break to eliminate thermal convection
- Outside skin features horizontal micro-grooves
- Concealed steel back-up plates run from top to bottom of each section for secure hardware attachment
- Bottom "U" type astragal is a standard feature
- Foamed in place CFC free polyurethane core
Track Options & Mounting Configurations
- Tracks are 2" or 3", as specified
- Available in bracket mount, clip angle mount, 12" radius, 15" radius, high lift, vertical lift, roof pitch, or dual track low headroom
Heavy-Duty Hardware Package
- Package includes 14 gauge or 11 gauge hinges, as specified
- 2" or 3" short-stem or long-stem ball bearing rollers
- Heavy-duty adjustable top roller brackets
Spring & Counterbalance System
- Torsion springs are helically wound with stress relieved, oil-tempered wire
- Springs are individually calibrated per door
- Counter-balance torsion shafts are galvanized for rust resistance
CHI Model 3282
3236 Polyurethane
- 2" thick section
- 32'2" x 20'0"
- Spec Data Sheet: Available
- 26 gauge front / 27 gauge back
3" Thick Section
- 40'2" x 20'0"
- Spec Data Sheet: Available
- Includes: Section Drawing, BIM Objects, Product Flyer
3282 (New!)
- 1-13/16" Polystyrene
- R-Value: 10.29
- 24 gauge front / 27 gauge back
- 2" thick section
- 28'2" x 20'0"
- Documents: 3-Part Spec, Spec Data Sheet, Section Drawing, BIM Objects, Product Flyer
3285
- 1-13/16" Polystyrene
- R-Value: 10
- (Further specs or documents may follow)
CHI Model 3285
Regardless of your specific application, C.H.I. offers a premium insulated door product guaranteed to deliver years of dependable operation. Our micro-grooved sandwich models are constructed in a variety of gauges and are available in both polyurethane and polystyrene insulation options for those applications that demand the best in thermal efficiency and value. And, if you're looking to enhance your buildings aesthetics, our sandwich doors are available powder-coated in over 182 different colors!
