Industrial Counter Shutters
Counter Shutters combine sleek design with reliable protection. Built for smooth operation, durability, and security in commercial and industrial spaces.
Get A Free Estimate Now
Counter Shutters
"PROVEN CAPABILITY FOR YOUR APPLICATION."
The 6500 series roll-up doors offer the best in security, flexibility, and appeal. Reduced sized slats provide for smoother operation and a more aesthetically pleasing appearance. End users and specifiers recognize the 6500 Series as state-of-the-art in design, fit, and finish, yet appreciate the simplicity and practicality that define the product.
{'rendered': ''}
{'rendered': ''}
{'rendered': ''}

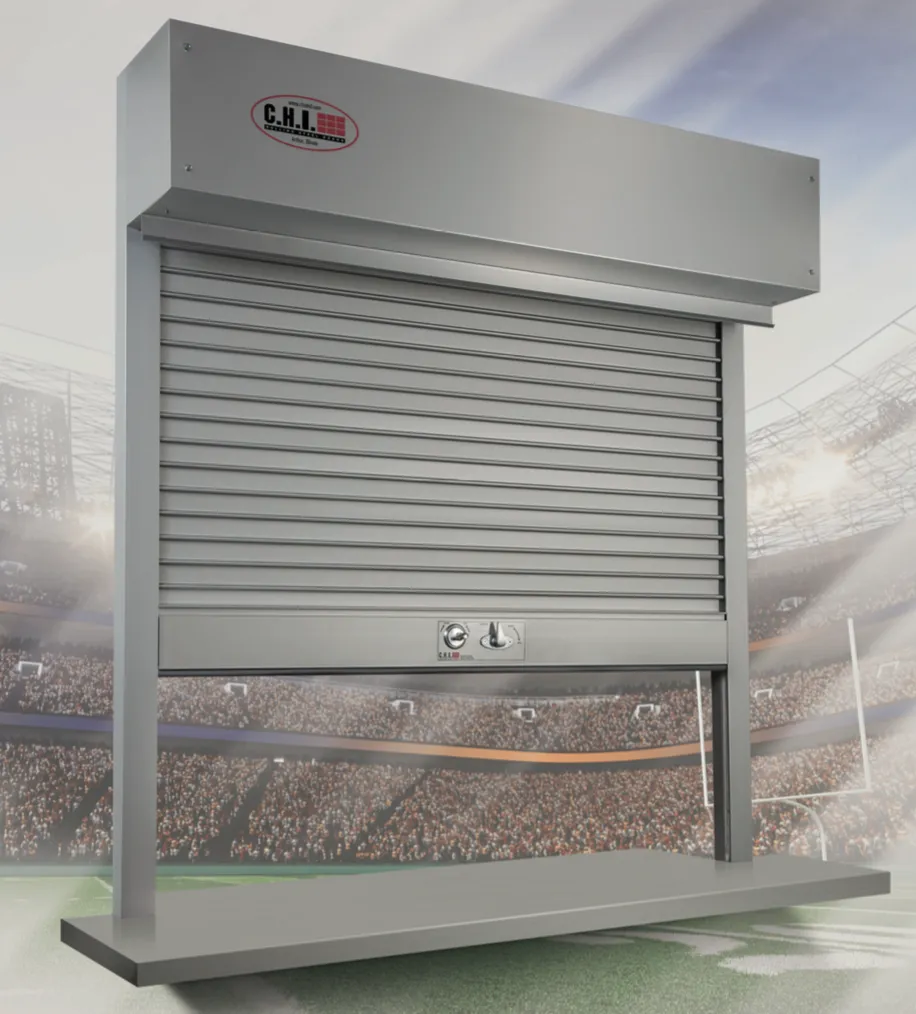

C.H.I. Counter Shutters 6544
- The 6500 series roll-up doors o er the best in security, exibility, and appeal
- Reduced sized slats provide for smoother operation and a more aesthetically pleasing appearance
- End users and speci ers recognize the 6500 Series as state-of-the-art in design
- Powder Coat Select powder coat options from a palette of 188 colors
- RAL numbers are provided for each color to ensure that your selection is consistent. Hidden Fasteners Two piece guide system incorporates fasteners concealed by the front guide for a clean appearance and easy installation
- Tube Motor Invisible tubular motor operation, awning crank operation, or wall mount motor is optional
- Integral Lift Rails Included on the bottom bar provide full-width manual access and simplified lifting
{'rendered': ''}
{'rendered': ''}
{'rendered': ''}
C.H.I. Counter Shutters 6566
Security and beauty blended with smooth, quiet and effortless operation, the C.H.I. Series 6500 counter shutter is a wonderfully refined, architecturally pleasing enclosure.
- The Model 6544 features a clear anodized, extruded aluminum curtain and guides
- The Model 6522 features a painted steel curtain with clear anodized, extruded aluminum guides
- The Model 6566 features a stainless steel curtain with a #4 finish and stainless steel "J" guides
- Blemish-free exterior: The Models 6544 and 6522 feature hidden headplates, guides and wall fasteners for a well-blended, architecturally sensitive appearance
- Visible seams and shadow lines are eliminated from extruded aluminum guides due to unique joint designs
- Soft brush guide runners silence curtain operation and seal out dust and noise. Dual-bottom bar seal assures a soft, non-marring touch down to valuable counter tops
- Thumb turn locks are spring assisted, and secure each side of the bottom bar into hidden recesses in the guides
- Cylinder locking is optional for each side. Integral lift rails on the bottom bar provide full width manual access and simplified lifting
- Invisible tubular motor operation, awning crank operation, or exterior mount motor is optional
- Compact in design, the Series 6500 installs into minimum head and side room dimensions
{'rendered': ''}
{'rendered': ''}
{'rendered': ''}
C.H.I. Overhead Doors - Rolling Counter Shutters
The 6500 Series offers the perfect balance of security, flexibility, and visual appeal. Designed to meet diverse project requirements, these shutters are available in steel, aluminum, and stainless steel construction.
Available Models:
- Model 6522: 22-gauge painted steel curtain with clear anodized, extruded aluminum guides
- Model 6544: 16-gauge (0.50) clear anodized, extruded aluminum curtain and guides
- Model 6566: 22-gauge stainless steel curtain with #4 brushed finish and extruded aluminum (standard) or stainless steel (optional) guides
Standard Colors:
- Gray, White, or Galvanized (Model 6522)
- Clear Anodized (Model 6544)
- 4 Brushed Finish (Model 6566)
- Optional: 188 RAL Powder Coat Colors (not available for Model 6566)
Mounting Options:
- Face of Wall Mount: Aluminum & Stainless Steel Guides
- Between Jamb Mount: Aluminum Guides
Operation:
Manual, Invisible Tubular Motor, Awning Crank, or Exterior Mount
