Pioneer Industrial Loading Dock Equipment
Loading Dock Equipment provides strength, safety, and reliability for every operation. From dock levelers to seals, Pioneer delivers proven performance and value.
Get A Free Estimate NowLOADING DOCK EQUIPMENT
Pioneer Dock Equipment manufactures and distributes a wide range of loading dock equipment. Pioneer is centrally located in Spring Hill, Tennessee, and sells through a national network of dealers. Pioneer Dock Equipment has been one of the leading manufacturers of quality loading dock equipment for more than 40 years. As such, our products are offered by many material handling, industrial door and forklift distributors across the US, in Mexico and Canada.
Pioneer Dock Leveler Models at a Glance
We sell, install and service the full Pioneer Dock Equipment line. Every leveler below is built on 55,000 lb. minimum yield steel tread plate; the differences are in how they lift and what duty they are built for.
- SMART+ HDH and SMART+ HP: flagship levelers with wall-mounted push-button controls
- EHP Series: fully hydraulic operation with HMI control panels
- M Series: the mechanical workhorse, with dock bumpers and grease fittings standard
- P2000 and C Series: pit levelers, with a positive hold-down on the C to ride trailer float
- BarLift and ED Series: compact 20,000 to 30,000 lb. units with 2-year standard warranties
- EVR, MVR and SLR truck restraints: hook and low-profile restraints that lock the trailer to the dock
Full specifications for each series are in the model tabs below, and our team will match the leveler to your dock traffic before quoting.
DOCK LEVELERS

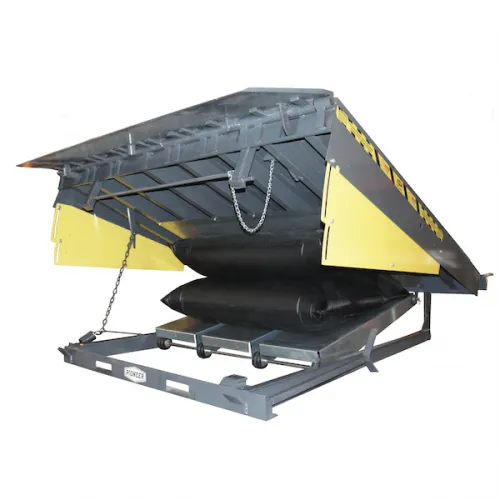

SMART+™ HDH SERIES
- 55,000 lb. minimum yield steel tread plate on the deck and lip
- Heavy-duty PVC-coated polyester fiber bag - resistant to chemicals, punctures, and temperature extremes
- All operations controlled from a pre-wired, wall-mounted control box
- Full-range toe guards powder-coated in safety yellow
- Grease fittings on lip hinge
- Lip designed to yield under impact
- (2) 4½" laminated bumpers per dock leveler
- 16″ lip projection - extends 12″ beyond bumpers
- Cross traffic support and night lock security via lip stored in lip keepers
- Standard maintenance strut included
- Standard dynamic capacities available
- Operating range: 12″ above to 12″ below deck
- Leveler can be recycled with truck in position
- Safety legs automatically provide multiple below-dock safety points
- 3-year warranty on all structural members

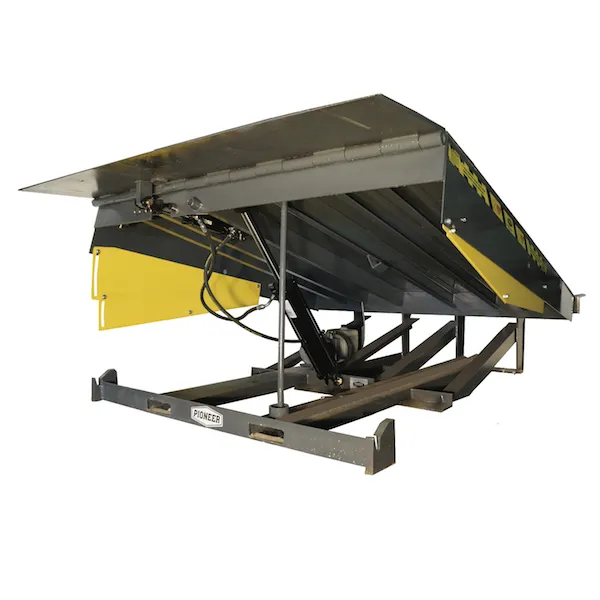

SMART+™ HP SERIES
- 55,000 pound minimum yield steel tread plate
- Structural "C" channel support beams
- 25,000 - 45,000 lb. capacities
- Automatic lip extension
- Automatic return to stored position when truck leaves
- In-line safety stop prevents sudden fall of deck
- Full operating range toe guards and grease fittings on lip hinge
- Heavy duty main and lip cylinder
- Molded bumpers protect the dock face and leveler from truck impact damage
- 5 year warranty on all structural members and cylinders

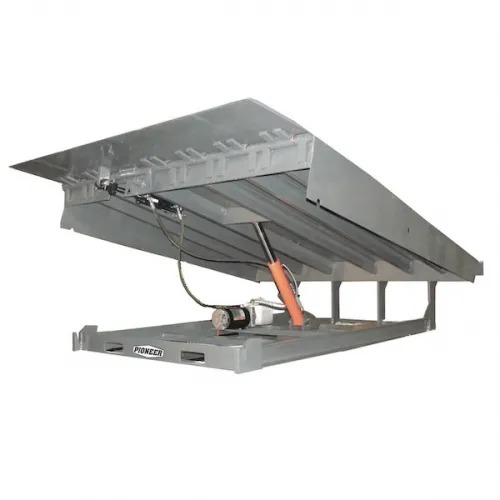

EHP M SERIES
SMART+™ HDH Series
- Combines cutting-edge technology with durable, fully hydraulic operation
- Features HMI (Human Machine Interface) control panels for simpler, more intuitive operation
- Built with a solid steel structural "C" channel design for maximum strength and reliability
- Equipped with solid-state proximity sensors to control deck and lip functions
- Available in dynamic capacities up to 80,000 lb
- Part of the SMART+™ line of levelers, known for dependable performance and modern design

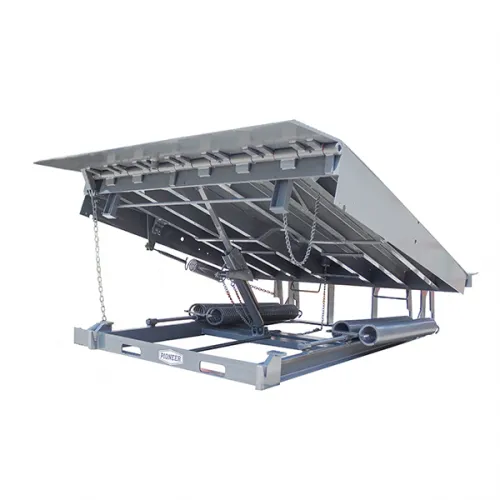

M SERIES
- 55,000 lb. minimum yield steel tread plate
- Structural "C" channel deck support beams for added strength and stability
- Dock bumpers and grease fittings on lip hinges included as standard
- Offers 18" and 20" lip options
- Conveniently located pull chain allows easy activation of deck and lip
- Standard working range toe guards for enhanced safety
- Safety legs automatically provide multiple below-dock safety points
- Molded bumpers protect both the dock face and leveler from truck impact damage
- 5-year warranty on all structural members

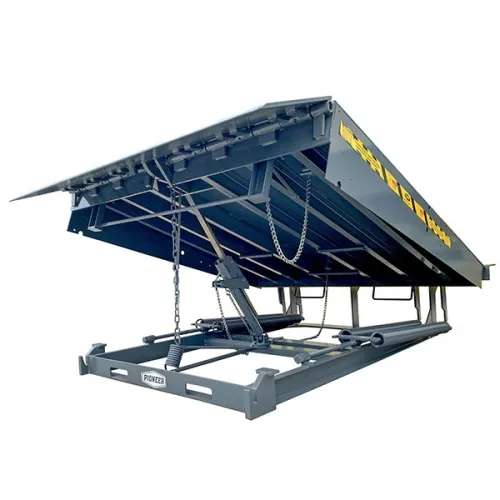

P2000 SERIES
- Structural "C" channel deck support beams ensure strength and stability
- 55,000 lb. minimum yield steel tread plate for superior durability
- Dock bumpers and grease fittings on lip hinges included as standard features
- Conveniently located pull chain allows easy activation of both deck and lip
- Direct extension spring provides smooth walk-down operation with no moving parts to wear out
- Standard working range toe guards and grease fittings on lip hinge for added safety and maintenance ease
- Safety legs automatically provide multiple below-dock safety points
- Molded bumpers protect the dock face and leveler from truck impact damage
- 3-year warranty on all structural members and main spring (P2000)
C SERIES
- 55,000 lb. minimum yield steel tread plate for superior strength and durability
- Full-length deck support beams fully welded to a full-width header plate for enhanced stability
- Positive Hold-Down device compensates for the vertical float of the trailer
- Conveniently located pull chain enables easy activation of deck and lip
- Direct extension spring allows smooth walk-down operation with no moving parts to wear out
- Standard working range toe guards and grease fittings on lip hinge for safe and easy maintenance
- Safety legs automatically provide multiple below-dock safety points
- Molded bumpers protect the dock face and leveler from truck impact damage
- Fixed rear hinge for added structural integrity
- 1-year warranty on all structural members and main spring

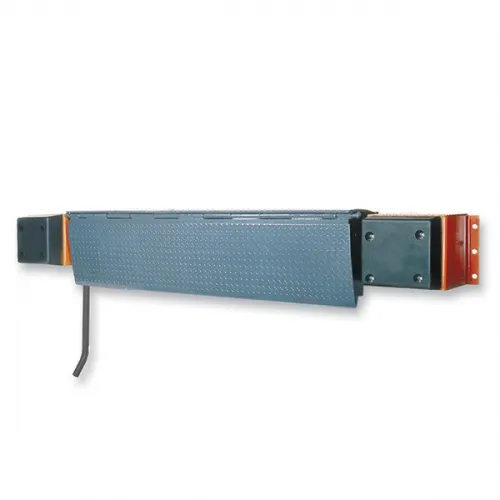

BarLift SERIES
- Capacities: 20,000 to 30,000 lb
- Warranty: 2-year standard coverage
- Deck: 55,000 lb. minimum yield safety treadplate
- Widths Available: 66″, 72″, 78″, and 84″
- Options: Available with or without bump blocks

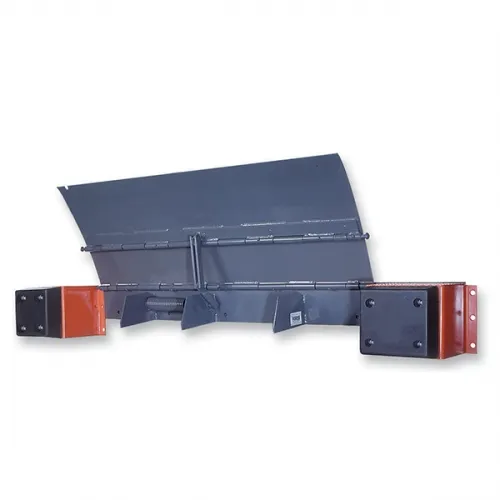

ED SERIES
- Capacity: 20,000-30,000 lb
- Warranty: 2-year standard warranty
- Deck Material: 55,000 lb. minimum yield safety treadplate
- Available Widths: 66″, 72″, 78″, and 84″
- Options: Available with or without bump blocks
TRUCK RESTRAINT EQUIPMENT
EVR 650 SERIES
- 55,000 lb. minimum yield steel tread plate on both the deck and lip
- Heavy-duty PVC-coated polyester fiber bag - resistant to chemicals, punctures, and extreme temperatures
- All operations controlled from a pre-wired, wall-mounted control box
- Full-range toe guards powder-coated in safety yellow for visibility and protection
- Grease fittings on lip hinge for easy maintenance
- Lip designed to yield under impact for added safety
- (2) 4½" laminated bumpers per dock leveler
- 16″ lip projection, extending 12″ beyond bumpers
- Cross-traffic support and night lock security via lip stored in keepers
- Standard maintenance strut included
- Standard dynamic capacities available
- Operating range: 12″ above to 12″ below deck
- Leveler can be recycled with truck in position
- Safety legs automatically provide multiple below-dock safety points
- 3-year warranty on all structural members
EVR 650S SERIES
- Unique "Hook Guard" system automatically detects a fully captured R.I.G. and changes inside/outside lights accordingly
- Provides redundant positive hook feedback through programmed logic - even if the R.I.G. is bent, missing, or improperly positioned
- Low-profile design for versatility and safety
- Operating range: 12″ to 30″
- Restraining force: Over 50,000 lbs
- Fully enclosed motor: 0.25 hp, single-phase, 115 volts
- Automatic push-button control for simple, efficient operation

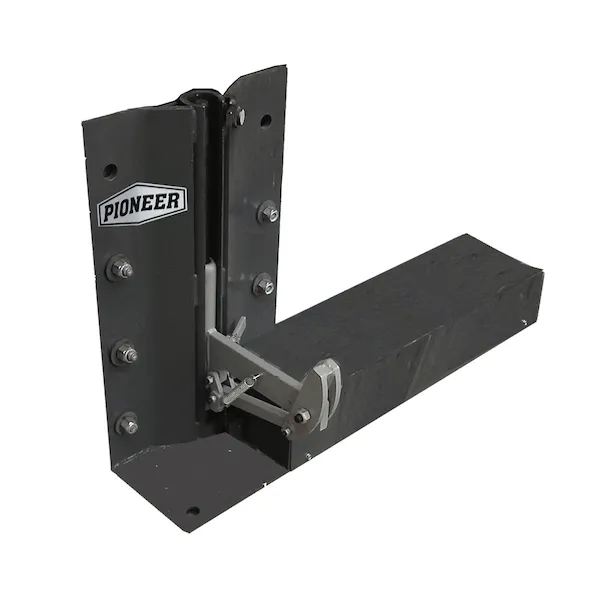

EVR 750 SERIES
- ForceFlex hook design provides superior holding strength while allowing safe truck departure when the release button is pressed
- Hook only releases when the dock attendant activates the release button for maximum safety
- Operating range: 12″ to 30″
- Restraining force: Over 37,000 lbs
- Fully enclosed motor: 0.25 hp, single-phase, 115 volts
- Automatic push-button control ensures smooth and easy operation

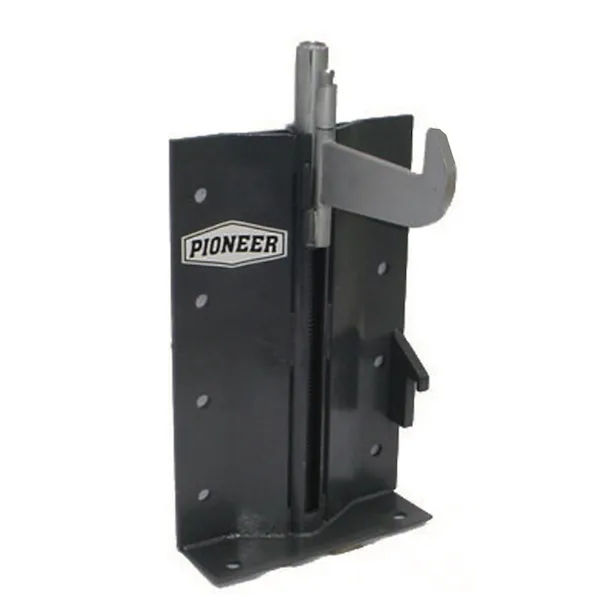

MVR SERIES
- Low profile
- Bolts to dock face and ground
- Restraining force of over 50,000 lb
- Self-cleaning spring and hook assembly
- Competitively priced to make safety affordable

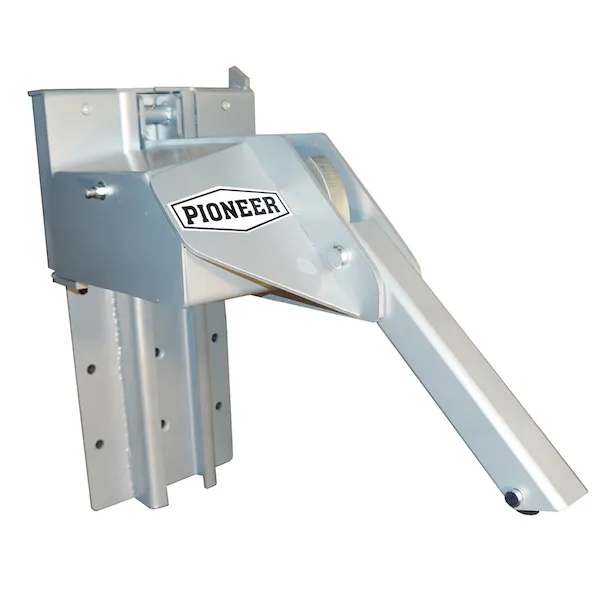

SLR 950 SERIES
- Low profile
- 12″ to 30″ operating range
- Restraining force of over 50,000 lbs
- Fully enclosed, .25hp motor, 1 ph., 115 volts
- Automatic push-button control for easy operation
- .25hp motor, 1 ph., 115 volts
Seals and Shelters

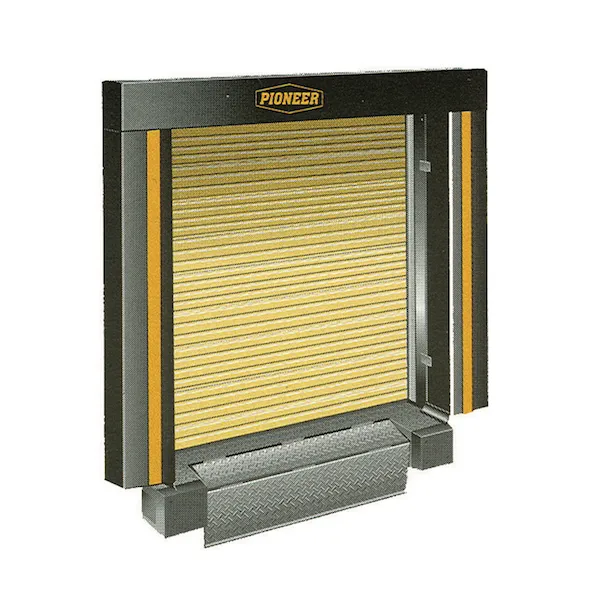

DOCK SEALS
- Weather-tight enclosure ensures maximum energy savings
- 100% lock-stitched seams, double-stitched on wear shingle models for added durability
- Available in assorted colors to match facility design
- 4″ full-length yellow guide strap included as standard for alignment and visibility
- Head curtain models available with or without foam for flexible configurations
- Counterbalanced adjustable head pad option for a secure, custom fit
- Metal hoods provide added protection and longevity
- Constructed with the highest-grade materials available
- Fabric weight protection: 40 to 140 oz
- Pressure-treated wood backing (steel backing optional) for long-lasting performance

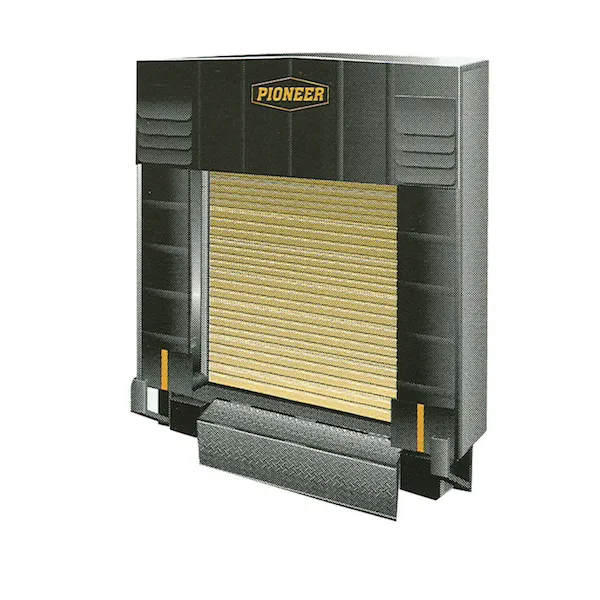

DOCK SHELTERS
- Raked-cut header on all rigid wood frame models prevents water accumulation on top
- Heavy-duty structural channel supports and protective bumpers included on rigid-type units
- Overlapping weather shingles on head curtains provide superior protection against moisture
- Side and head curtain wiper action allows full access to the rear of the truck
- Face curtains on rigid units include Scotch Ply fiberglass stays and yellow guide stripes for durability and visibility
- Rigid frame models feature a 6 oz. translucent white fiberglass top cover for light transmission and weather resistance
- Side covers made from 28 oz. translucent PVC base fabric or 6 oz. translucent fiberglass, offering strength and flexibility

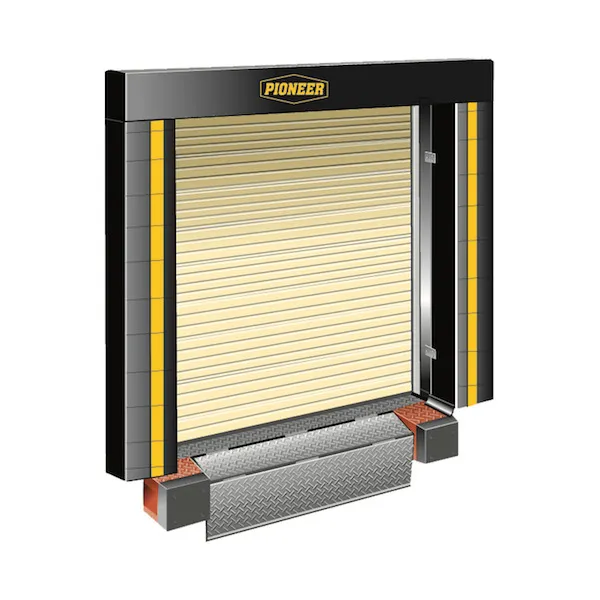

DURA SEAL
- PX25 (high-tear) base material for exceptional durability
- LTA material (PX420 high-tear variant) for enhanced strength and longevity
- Side pad wedge included as standard, adjusted according to opening width
- Head curtain style available with slits on each side (optional pull cord available)
- 20″ wide PX420 wear pleats on head pad corners; on head curtain models, wear pleats match side pad width
- PX420 inside wear face on the bottom 48″ of each side pad for added protection
- Three-year warranty included
Pioneer Dock Leveler FAQs
What does Pioneer Dock Equipment make?
Pioneer manufactures and distributes a full range of loading dock equipment from its plant in Spring Hill, Tennessee: dock levelers, truck restraints, dock seals, shelters and related accessories. Apex Overhead Doors sells, installs and services the Pioneer line locally.
Which Pioneer dock leveler should I choose?
It comes down to traffic and operation. Hydraulic levelers like the EHP and SMART+ series give you push-button operation for busy docks, the mechanical M Series keeps a lighter-duty dock simple and affordable, and the compact BarLift and ED units cover docks that load occasionally. We look at your dock and trailers before recommending one.
What is a truck restraint and do I need one?
A truck restraint locks the trailer to the dock while it is being loaded so it cannot creep or pull away early. Pioneer's EVR restraints grab the trailer's rear impact guard with a hook that releases only when the dock attendant presses the release, which is the single biggest safety upgrade most docks can make.
Do you service Pioneer dock levelers after installation?
Yes. The same Apex crew that installs your leveler handles planned maintenance and repairs, and our emergency line covers a dock position that fails mid-shift.
