Industrial Cold Storage Doors
Cold Storage Doors deliver reliable performance in demanding environments. Built for efficiency, safety, and temperature control across every industry.
Get A Free Estimate NowCOLD STORAGE DOORS
You buy the expertise and experience of a company with demonstrated leadership in the design and manufacture of doors for all types of environments. Our involvement dates back a century and has produced innovative solutions for every cooler and freezer requirement. Our strong commitment to research and development, our engineering know-how, and our highly-skilled workforce enable us to successfully handle projects of any size or complexity. As a result, Jamison Doors are chosen most often throughout the food, pharmaceutical, and all other temperature-controlled industries.
Mark IV™ - ADS-200A

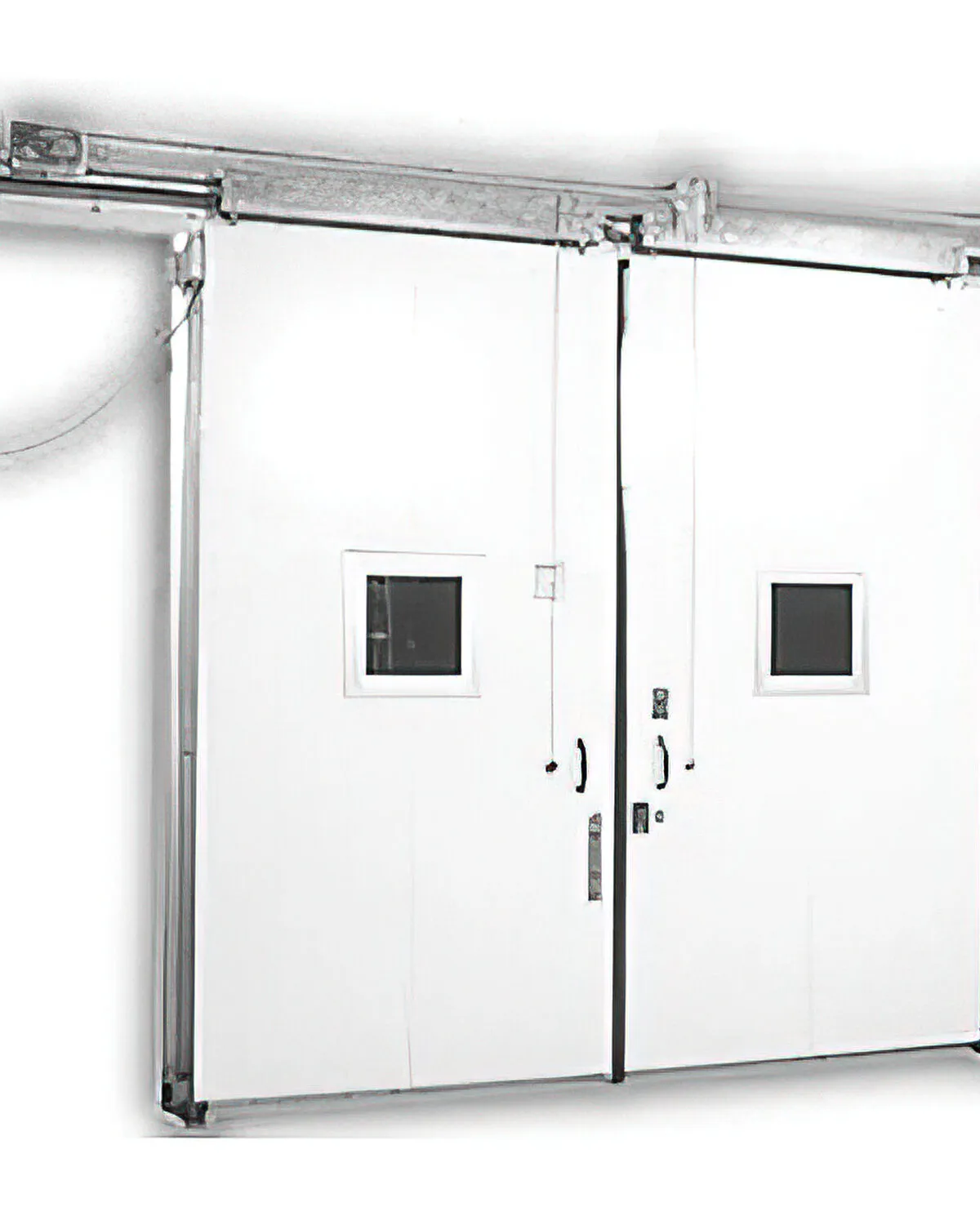

Jamison Mark IV® "DS" Series Power Operated Bi-Parting Horizontal Sliding Cooler Door is Jamison's most popular door, known throughout the industry for its unique design, innovative features, and reliable performance. With high-speed operation, durable materials, and superior sealing, it's engineered to deliver long-lasting efficiency and easy installation. Explore its standout features and specifications below:
High-Performance Operation
Jamison's most popular door offers unique designs, features and benefits that keep it in high demand throughout the industry. The Dual Speed (DS) operator opens at up to 80″ per second. Powertron® Operator: The most popular power operator in the history of cold storage. Tested trouble-free through more than 2 million opening/closing cycles.
Smooth & Reliable Track System
Diamond-Trac® Roller System: This patented system elicits rave reviews from industry experts and customers. It permits a smooth, quiet gliding action unrivaled in any door of its type. Its superior sealing ability is due to its down-and-in motion that pushes the door tightly against the gasketed casing and floor.
Installation & Flexibility
- Easy Installation: With track and angles preassembled on our casings, installation is quick and easy
- Flexibility: Closer positioning of doorways also provides critical floor and wall space savings
- Extruded aluminum door frame: Provides strength superior to wood
- Versatile: Designed to handle applications up to a 100F delta T, and available with many options
Construction & Materials
- Standard panels: White, stucco-embossed #26 gauge galvanized steel, front and back
- 5-year limited warranty
- Frame: Casings and header constructed of aircraft quality aluminum extrusions with white painted finish
- Door leaves: Aluminum extruded structure, metal clad with #26 gauge white pre-painted stucco embossed steel front and back
- Filled with 4″ of Jamifoam non-CFC polyurethane insulation with an R value of 28 at 40°F. Frame insulated with polystyrene inserts
Technical Specifications & Safety Features
- Dual-speed brake motor designed to open door at 80″ per second and close door at 40″ per second
- Low profile pneumatic reversing edge, effective full height and full travel of door
- Upon contact, door in closing cycle is instantly reversed to open position
- Adjustable gasket at sides and head of frame and reversing edges cover gasket to be polyester reinforced
- Door leaves to have sweep type sill gasket
Mark IV™ - ADS-200
Jamison Mark IV® "DS" Series Power Operated Bi-Parting Horizontal Sliding Cooler Door is Jamison's most popular door, known for its innovative design, fast operation, and outstanding sealing performance. Its combination of advanced technology, durable construction, and easy installation makes it a top choice in the cold storage industry. Explore its key features and specifications below:
SECTIONS HARDWARE
- Sections are 1.5" thick
- Sections include a thermal break to eliminatethermal convection
- Outside skin features horizontal micro-grooves
- Concealed steel back-up plates run from topto bottom of each section for secure hardwareattachment
- Bottom "U" type astragal is a standard feature
TRACKS
- Tracks are 2" or 3", as specified
- Available in bracket mount, angle mount, clipangle mount, 12" radius, 15" radius, high lift, vertical lift, roof pitch, or dual track low headroom
- Package includes 14 gauge and 10 ball rollers, as specified
- 2" or 3" short-stem or long-stem ball bearing rollers
- Heavy duty adjustable top roller brackets
SPRINGS
- Torsion springs are helically wound with stress relieved, oil-tempered wire
- Springs are individually calibrated per door
- Counter-balance torsion shafts are galvanized for rust resistance
INSULATION TYPE
- Foamed in place CFC free polyurethane core
- R-value - 13.68
Weatherstripping
Grey weatherstripping is angled to provide a tighter seal preventing bugs and insects easy access or entry.
Reset System
Interlocking brush seal is incorporated at the top of the Snaptite tracks causing a reset system. Should the door be forced out of the tracks by accidental impact the door is designed to reset back into the guides.
Mark IV™ - ADS-212A

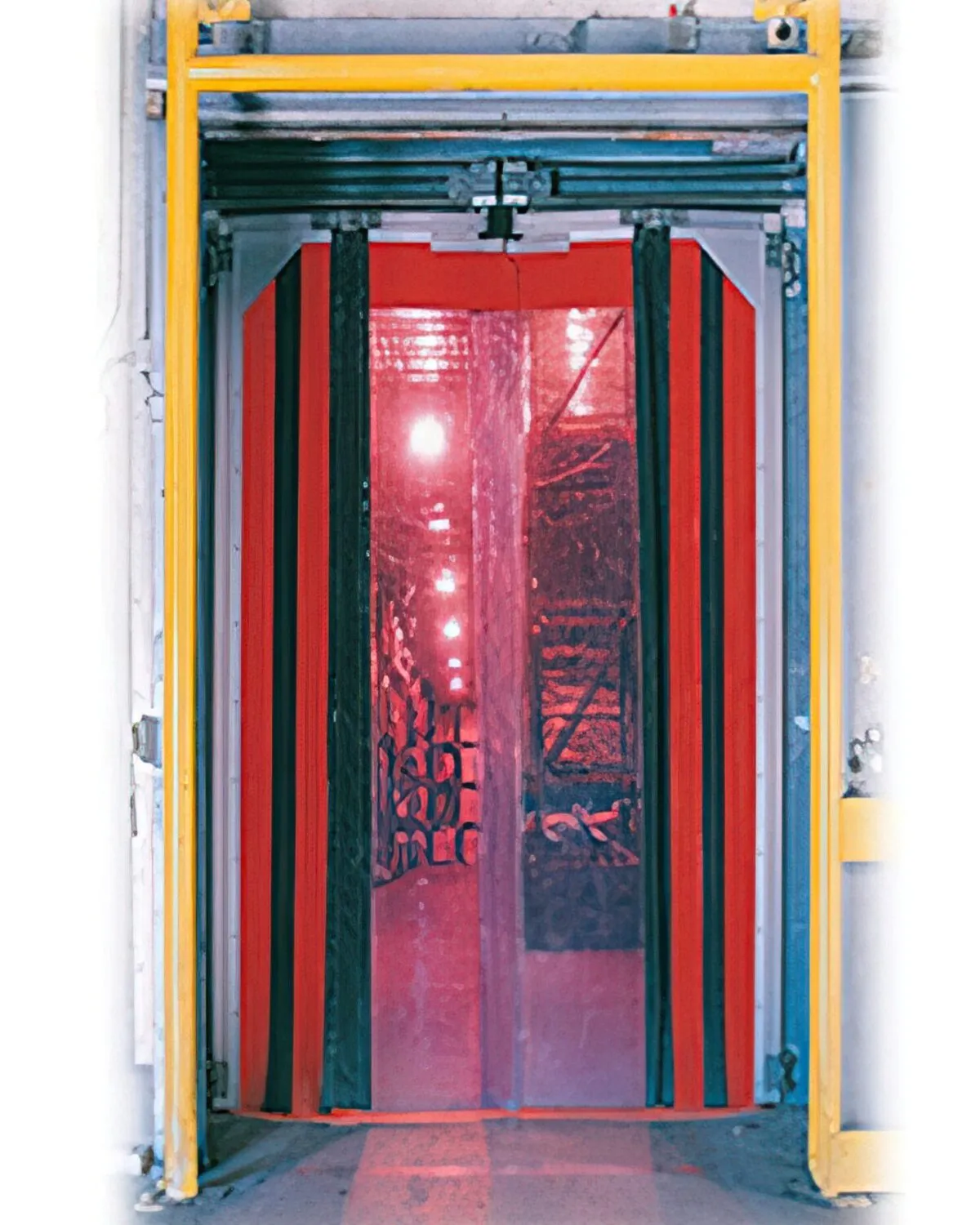

Jamison Mark IV InVision® BiFolding Power Operated Cooler Door is a digitally controlled, high-speed operating door designed for high volume traffic. Built with durable materials, precision technology, and superior sealing, this door is ideal for demanding environments. Explore its standout features and specifications below:
Fast & Efficient Operation
- Digitally controlled fast operating door for high volume traffic
- Opens at an incredible 96" per second
- Variable speed drive provides smooth starts and stops
- Constructed of lightweight aluminum and is extremely durable
- Easy-to-install
- Resists bacteria, mold, mildew and microbiological growth
- Control panel is UL listed
- 5-year limited warranty
Door Panels & Frame Construction
- Supply where indicated on plans Jamison Mark IV InVision® BiFolding, Power Operated, Cooler Door with PowerTron® Digital Controller
- Door panels to be made of PVC vinyl, supported by anodized aluminum framing and retainers
- Center panels to be transparent flexible 0.3″ (7 mm) thickness and side panels to be orange reinforced vinyl
- Panels to be supplied with Velcro* seams
- Casing frame, track angle, header, door panel frame and retainers to be T6063-T6 aircraft grade anodized aluminum alloy
- Full width removable hood to be provided with gray painted finish
- Vinyl gaskets to be provided at two sides and across head where door contacts casing frame
Hardware & Safety Components
- Hardware to have protective coating against corrosion
- Heavy-duty side support hinges to have thrust ball bearing and center pivoting hinges to have oil impregnated bronze bearing
- Large diameter heavy-duty dual trolley wheels and a #40 drive chain to be furnished
PowerTron® Digital Controller
- Door to be equipped with PowerTron Digital Controller, a maintenance free servo drive unit
- Door to open at speed up to 100″ per second
- Control unit includes pre-programmed motor operation, automatic open and close limit setting system and integrated cycle counter
Mark IV™ - ADS-220
Jamison Mark IV™ VersaFlex™ Bi-Parting Power Operated Door - ADS-220 is a digitally controlled, fast-operating door built to handle high volume traffic with speed, reliability, and durability. Designed for smooth operation and long-term performance, it combines advanced technology with a robust construction ideal for demanding environments. Explore its key features and specifications below:
Fast & Efficient Operation
- Digitally controlled fast operating door for high volume traffic
- Opens at an incredible 96" per second
- Variable speed drive provides smooth starts and stops
- Constructed of lightweight aluminum and is extremely durable
- Easy-to-install
- Resists bacteria, mold, mildew and microbiological growth
- Control panel is UL listed
- 5-year limited warranty
Panel & Frame Construction
- Supply where indicated on plans Jamison Mark IV InVision® BiFolding, Power Operated, Cooler Door with PowerTron® Digital Controller
- Door panels to be made of PVC vinyl, supported by anodized aluminum framing and retainers
- Center panels to be transparent flexible 0.3″ (7 mm) thickness and side panels to be orange reinforced vinyl
- Panels to be supplied with Velcro* seams
- Casing frame, track angle, header, door panel frame and retainers to be T6063-T6 aircraft grade anodized aluminum alloy
- Full width removable hood to be provided with gray painted finish
- Vinyl gaskets to be provided at two sides and across head where door contacts casing frame
Heavy-Duty Hardware Components
- Hardware to have protective coating against corrosion
- Heavy-duty side support hinges to have thrust ball bearing and center pivoting hinges to have oil impregnated bronze bearing
- Large diameter heavy-duty dual trolley wheels and a #40 drive chain to be furnished
PowerTron® Digital Controller
- Door to be equipped with PowerTron Digital Controller, a maintenance free servo drive unit
- Door to open at speed up to 100″ per second
- Control unit includes pre-programmed motor operation, automatic open and close limit setting system and integrated cycle counter
