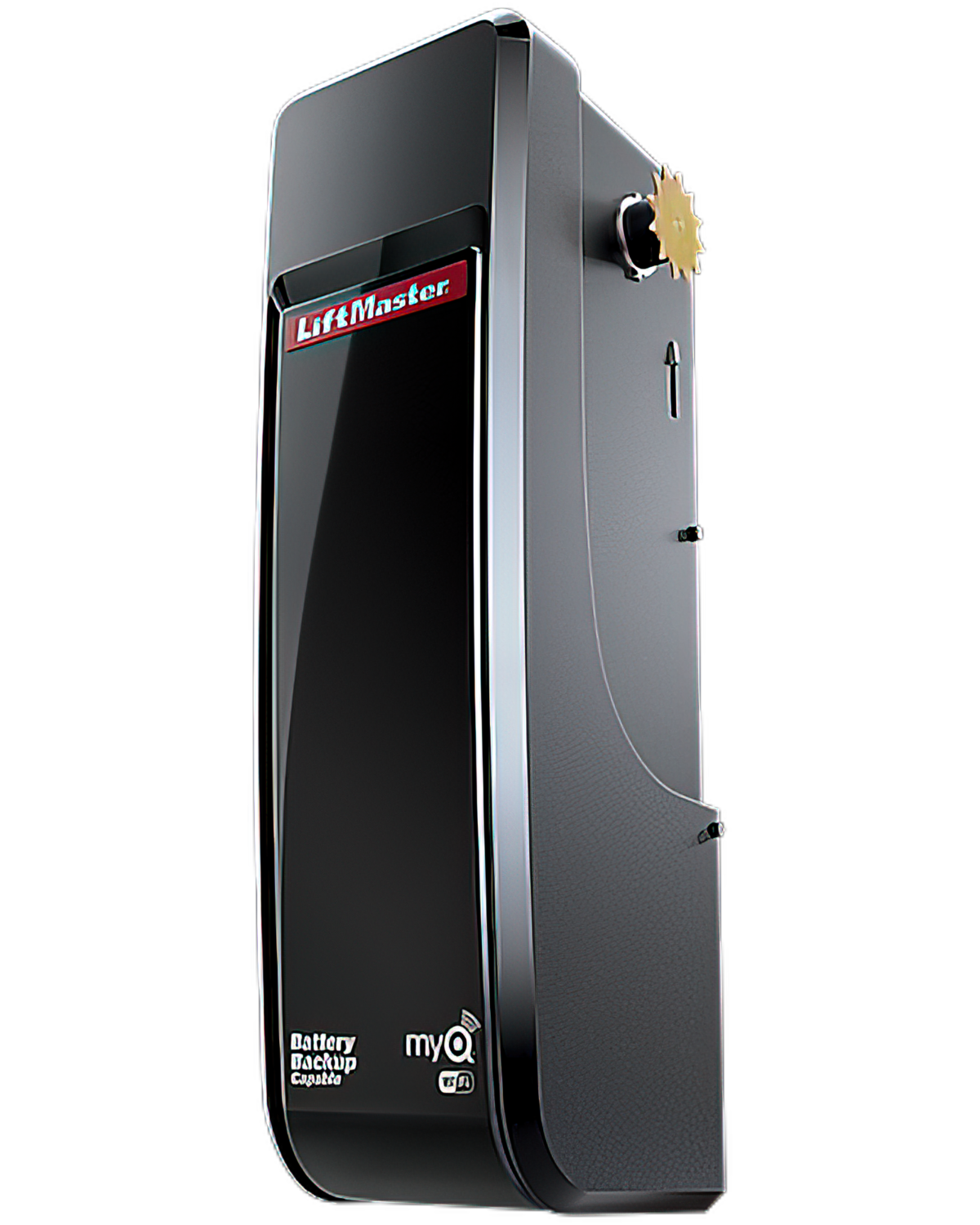

• Wallmount with smaller, lighter rolling doors and grilles.
• Rated duty cycle: Maximum 10 cycles per hour; Fewer than 25 cycles per day.
• Easily connect the operator to the facility’s network with built-in Wi-Fi^®.

SECTIONS

• Features four evenly spaced micro-grooves that run horizontally across each section.• 2” thick sections are foamed in place with polyurethane for superior R-value• Thermally-broken to eliminate thermal convection• Gasket seal between sections provide for an extremely tight weatherseal• Concealed steel back-up plates run from top to bottom of each section for secure hardware attachment• Bottom “U” type astragal is a standard feature• Available in white

TRACKS

• Tracks are 2” or 3”, as specified• Available in bracket mount, angle mount, clip angle mount, 12” radius, 15” radius, high lift, vertical lift, roof pitch, or dual track low headroom

HARDWARE

• Package includes 14 gauge or 11 gauge hinges, as specified• 2” or 3” short-stem or long-stem ball bearing rollers• Heavy-duty adjustable top roller bracketsSPRINGS• Torsion springs are helically wound with stress relieved, oil-tempered wire• Springs are individually calibrated for each door• Counter-balance torsion shafts are galvanized for rust resistance• High cycle spring options may be specified

INSULATION TYPE

• Foamed in place CFC free polyurethane core• R-value* – 17.54

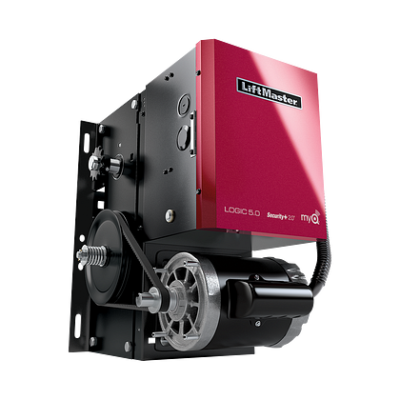

• For use on mid-range duty-cycle applications when specifications require a gearhead reducer.
• Rated duty cycle: Maximum 12 cycles per hour; Less than 50 cycles per day.

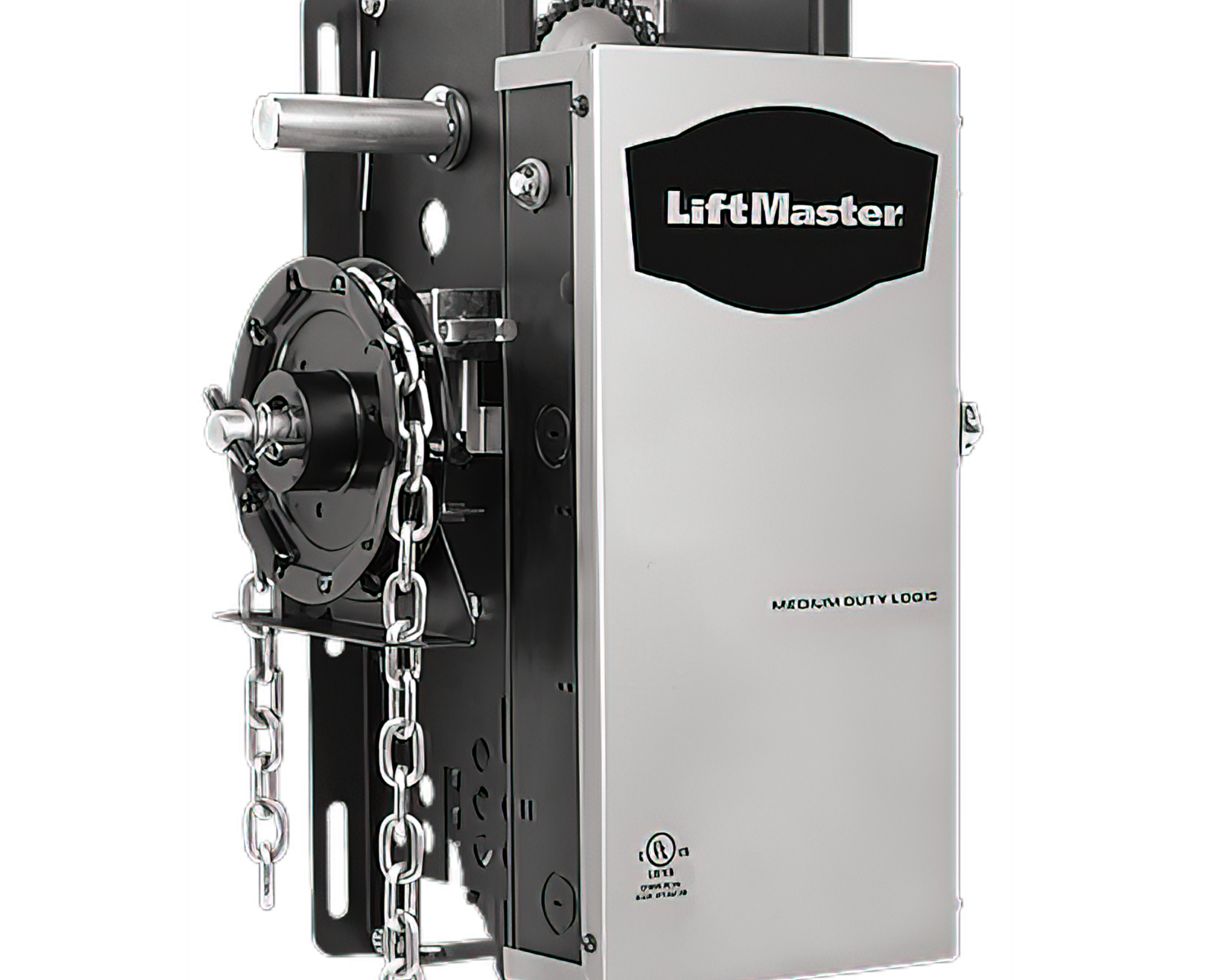

• Wall mount for high or vertical lift sectional doors or small rolling doors and grilles.
• Floor level disconnect disengages operator for manual lifting in an emergency.

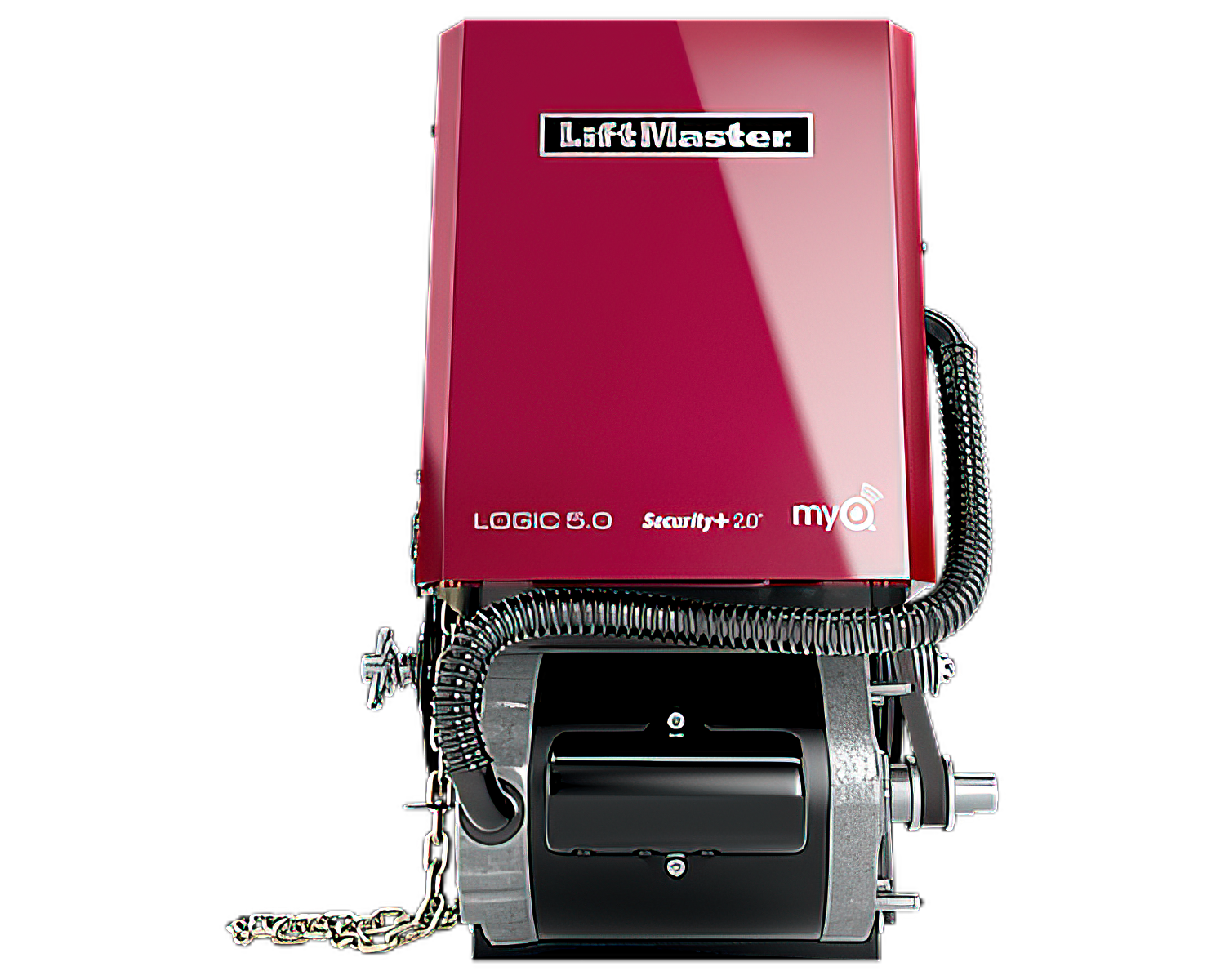

• For use on rolling sheet doors which require slower speeds.
• Rated duty cycle: Maximum 12 cycles per hour; less than 50 cycles per day.
• Slow speed operation with electric interlock and chain hoist for manual operation in an emergency.
• Wall mount for small rolling sheet doors.

• For use on industrial applications with smaller sectional doors.
• Rated duty cycle: 25 per hour; Up to 90 cycles per day.

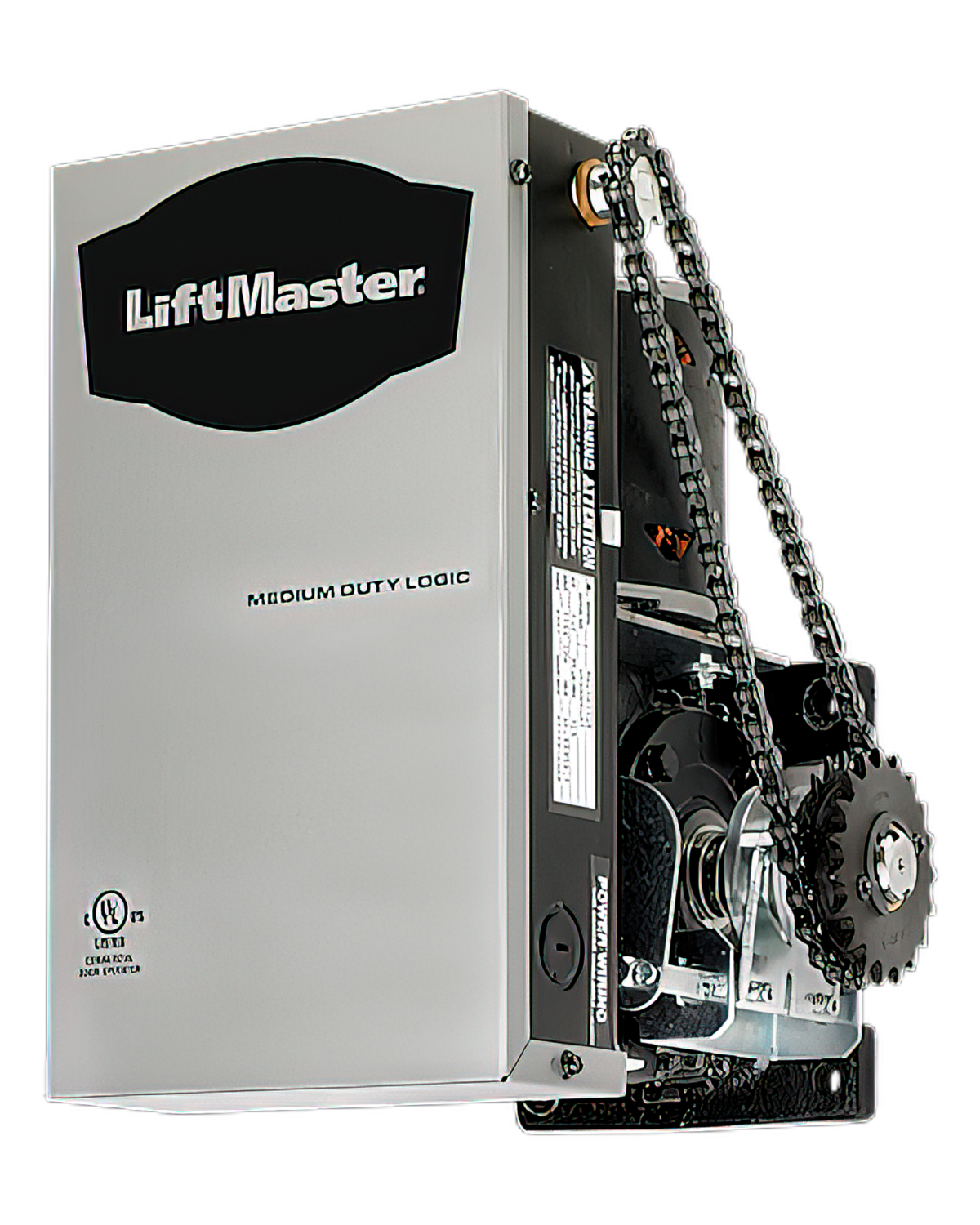

• Side mounts to the wall for vertical or high-lift doors.
• Smaller rolling doors and grilles.  Wall or hood mounts.

• For shopping malls and cafeterias. Includes floor-level chain hoist for larger, heavier doors/grilles.
• Rated duty cycle: 25 per hour; Up to 90 cycles per day.
• Internal door lock sensor prevents damage by restricting door activation while door is locked.
• Wall or hood mounts for rolling doors/grilles and sectional overhead doors with vertical high lift.

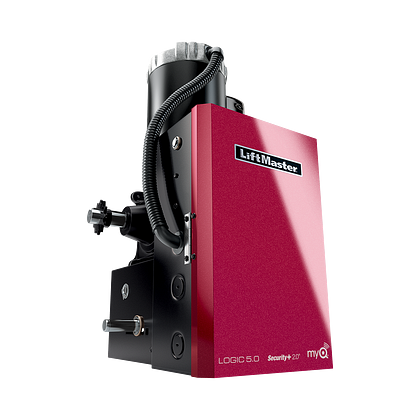

• Optimal for industrial applications with larger sectional overhead doors.
• Rated duty cycle: 25 per hour; Up to 90 cycles per day.
• Side mounts to the wall for vertical or high-lift doors.
• Rolling doors and grilles.  Wall or hood mounts.

• For use on heavy industrial, high cycle applications. Lubricated gear system and numerous custom modifications.
• Rated duty cycle: 25 per hour; Greater than 90 cycles per day.

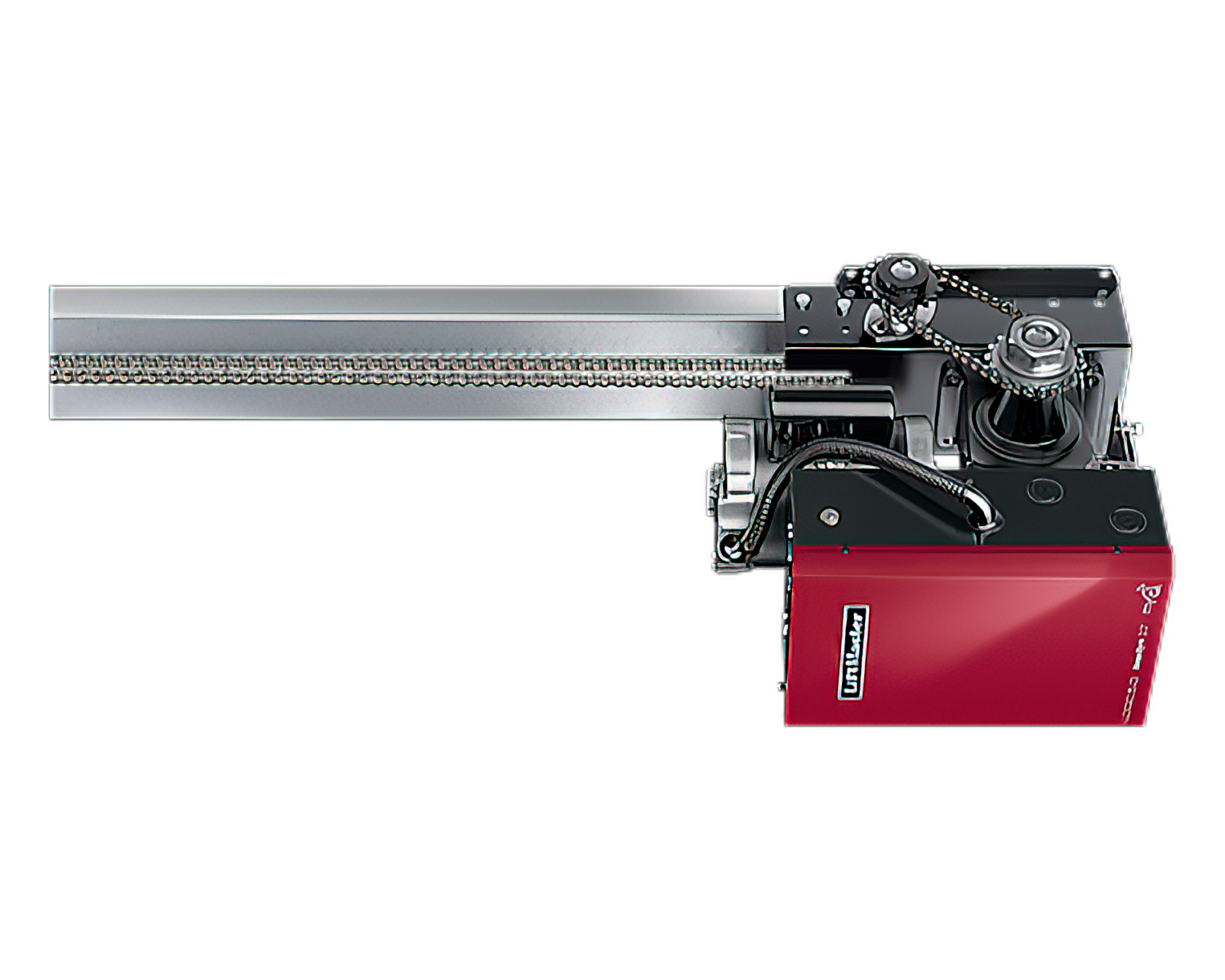

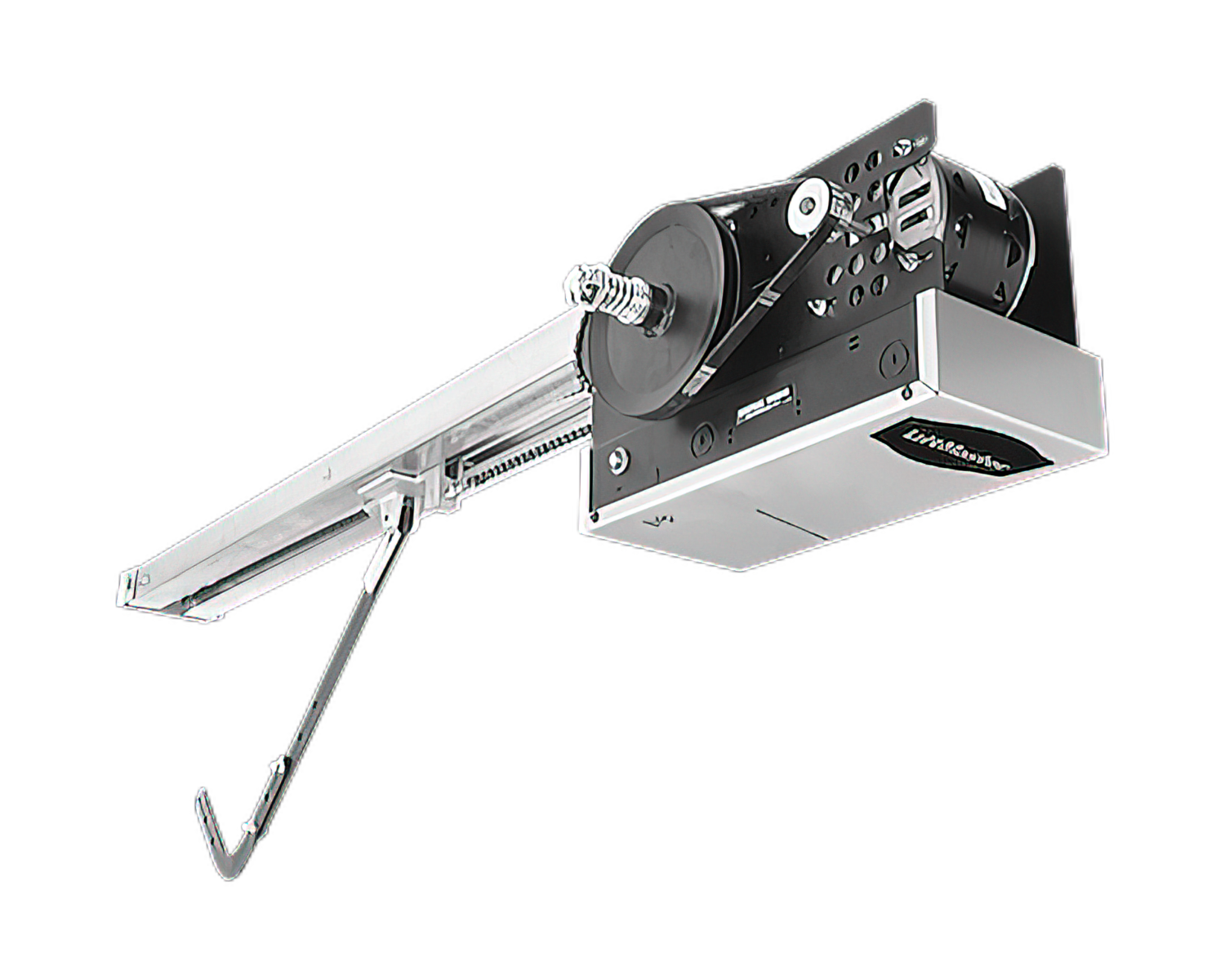

• Suspends from the ceiling. Directly attaches to drive and controls the door.
• Sectional overhead doors.

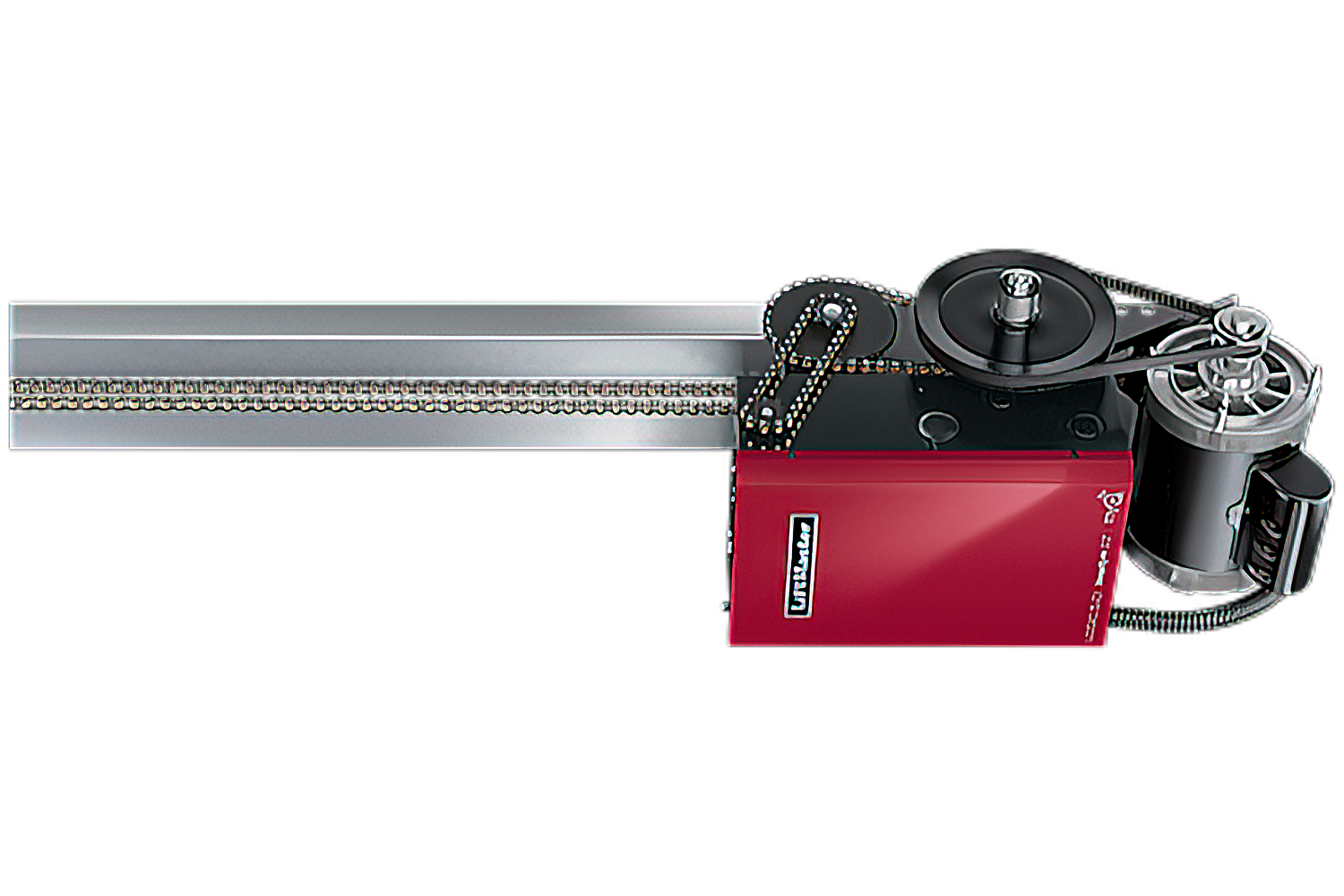

• For use on industrial slide doors.
• Rated duty cycle: 25 per hour; Up to 90 cycles per day.
• Ideal for farm and agriculture buildings, storages sheds and hangars.

• For use on heavy industrial, high-cycle doors. Lubricated gear system and numerous custom modifications.
• Rated duty cycle: 25 per hour; Greater than 90 cycles per day.
• Larger/heavier sectional overhead doors. Side mounts to the wall for vertical or high-lift doors.
• Larger/heavier rolling door and grilles.

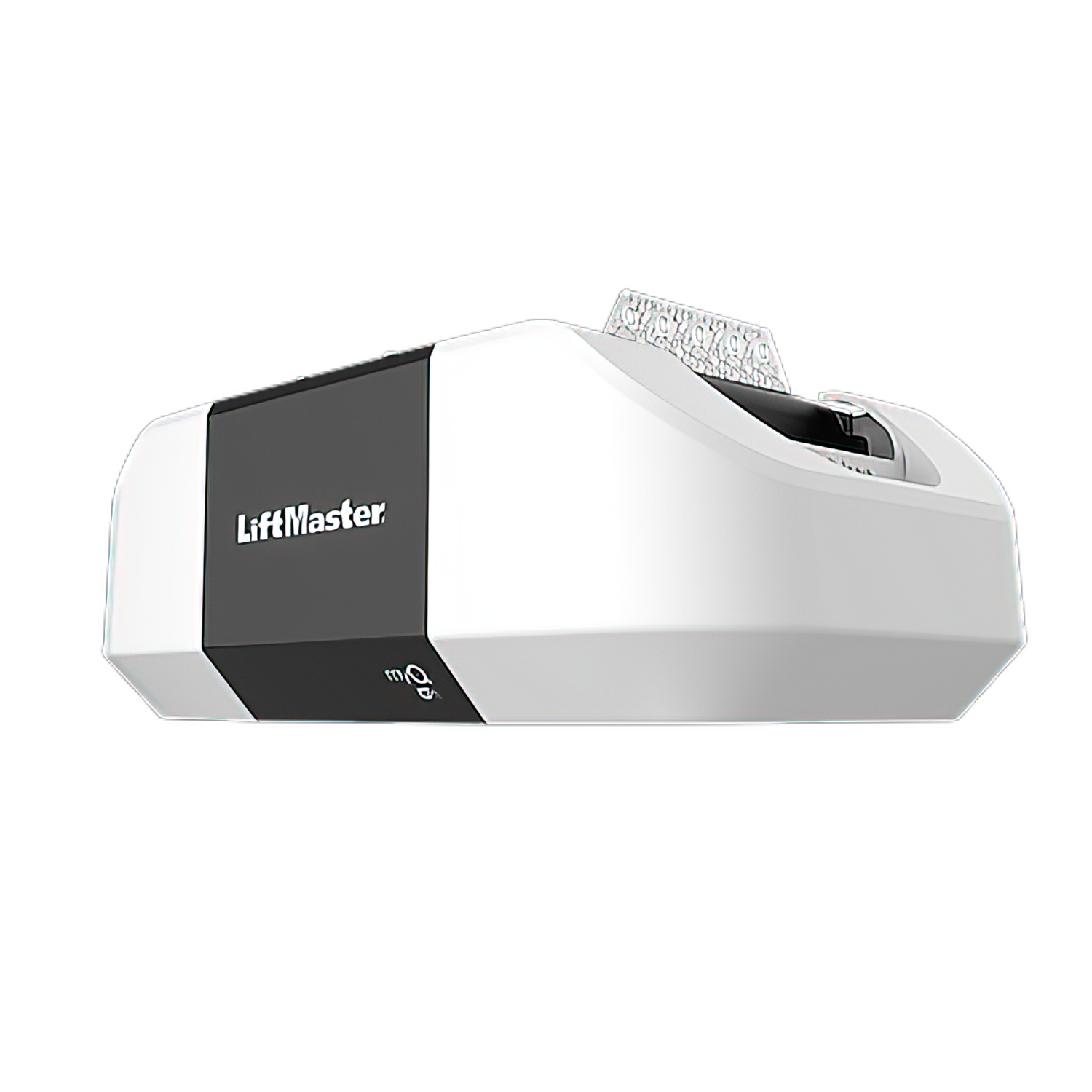

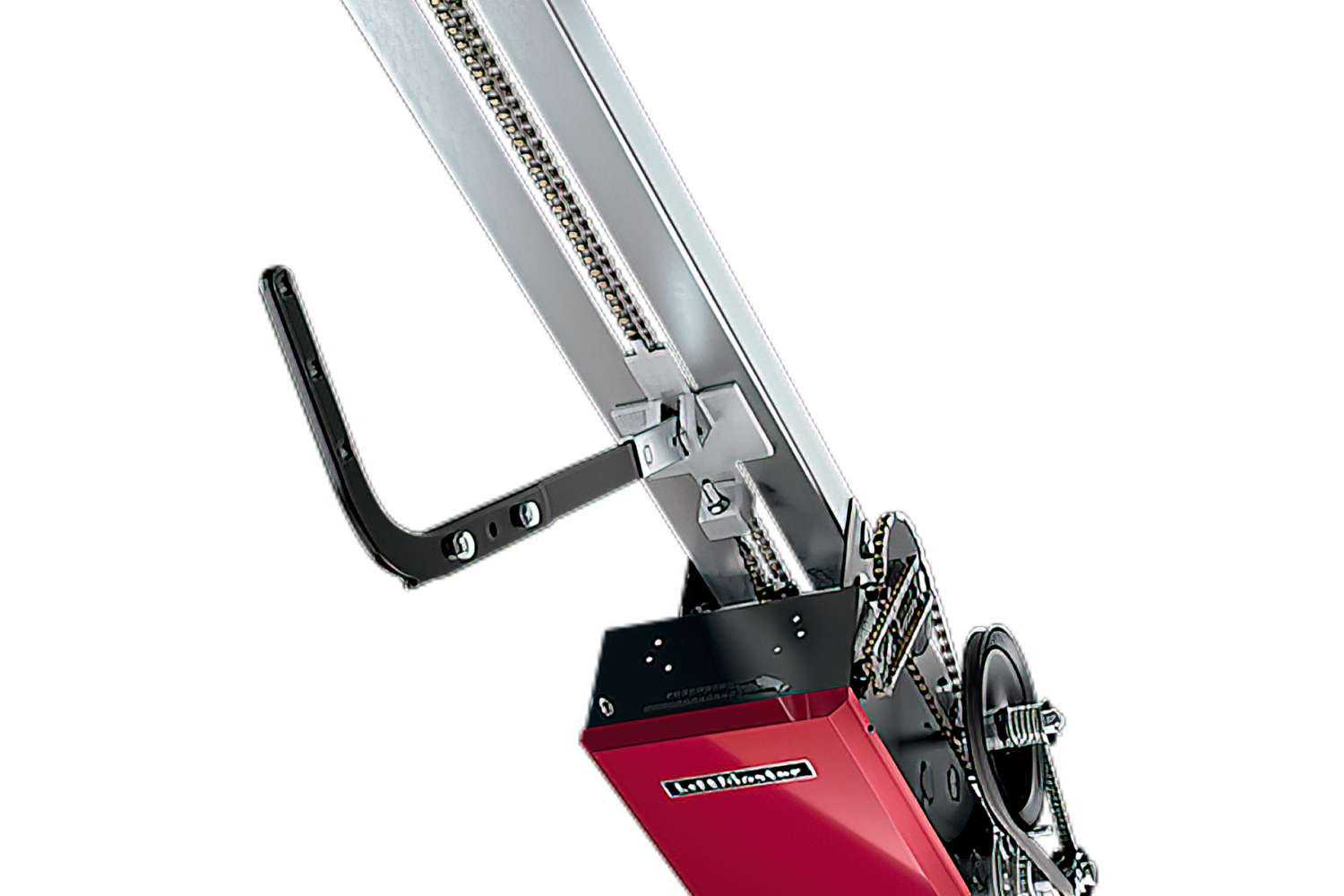

• For use on standard-lift sectional overhead doors.
• Rated duty cycle: 25 per hour; Up to 90 cycles per day.

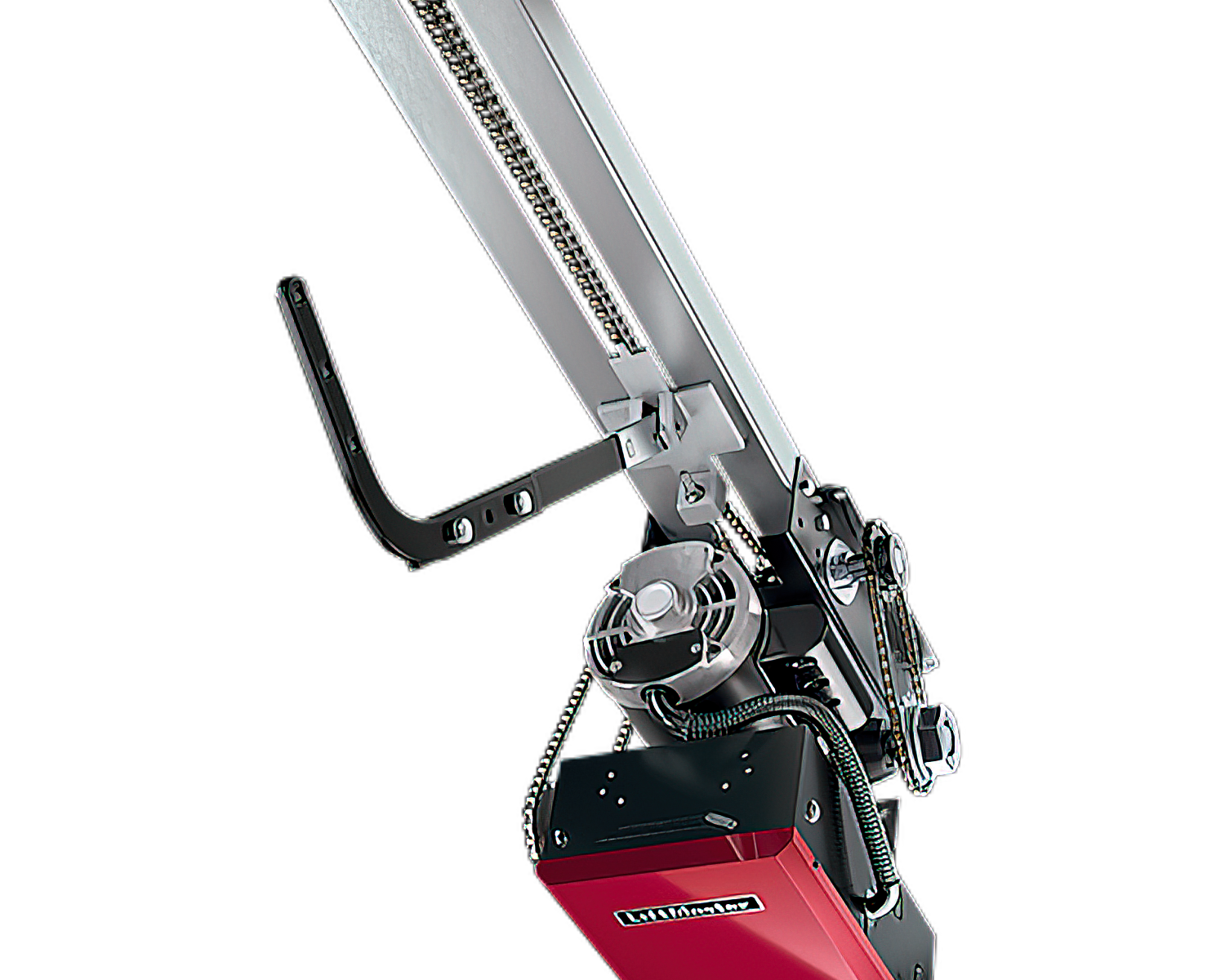

• Suspends from the ceiling. Directly attaches to drive and controls the door.

Manual fire door operator The LiftMaster Retrofit Manual Fire Door Hoist Operator provides manual door operation using a floor level hand chain allowing a user to open and close their fire door with ease.

Features include:

• Spring loaded release arm
• Adjustable governor
• Automatic closing without loss of spring tension
• Left or right side door mounting
• Holding brake

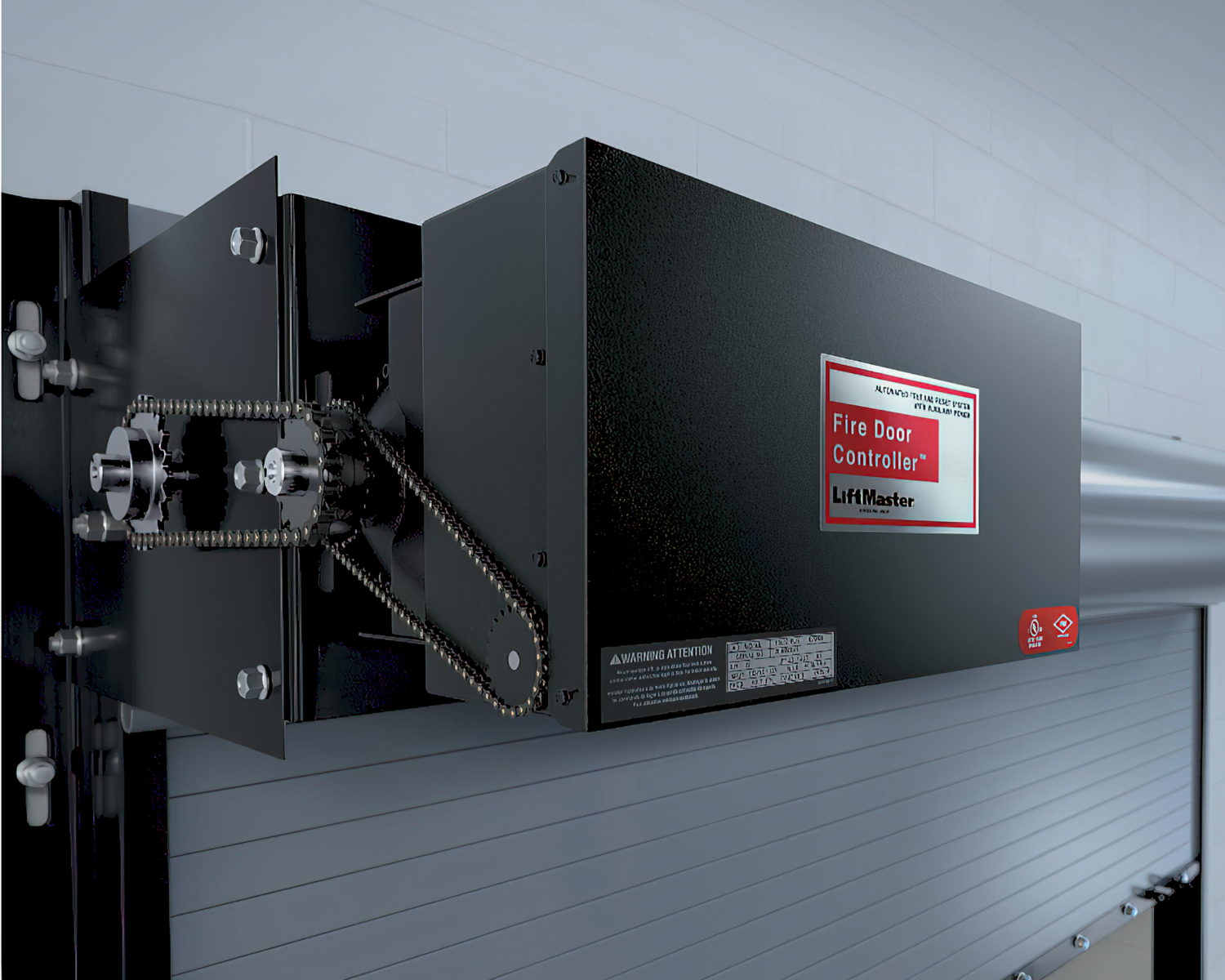

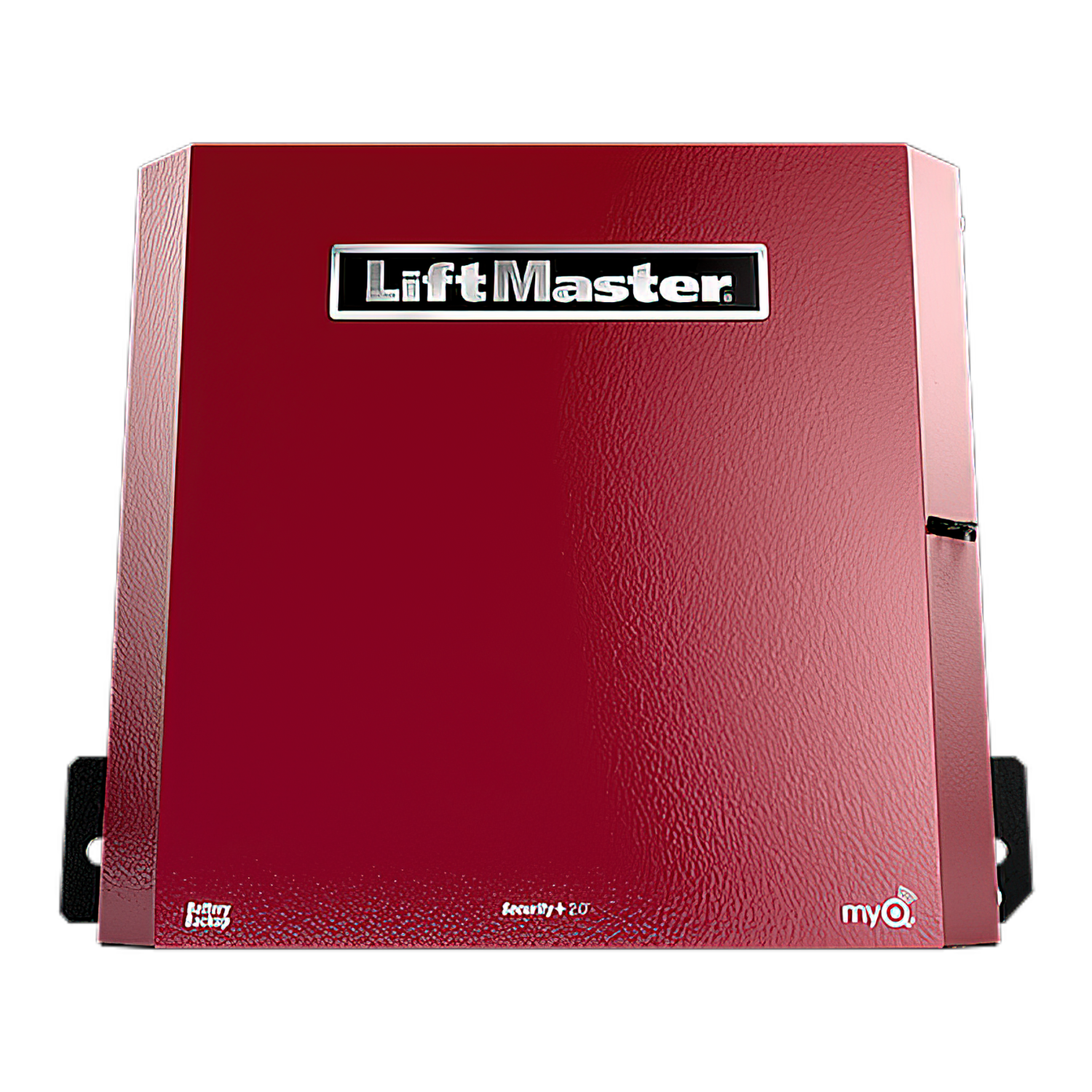

Advanced fire control release device The AFCB release device is designed to be used in conjunction with a standard commercial door operator to provide a fully automated door closing system. For use with motorized doors incorporating a reversing electric safety edge, this 120VAC device can power up to 4 smoke detectors and 2 horn/strobes. This system combines state-of-the-art functionality and advanced features typically found on special-order fire door operators.

Features include:
• UL864/ULC-S527/S533 Listed
• Programmable DIP switch delay setting – either 10, 20, 30, 60 second delay of door release to permit passage clearance

Plus:
• Internal battery backup system
• Obstruction cycling – working in conjunction with the door’s electrical safety edge reverses the door if an obstruction is encountered
• Motor voltage sensing
• Test key switch – permits floor-level testing of the system

The AFCB release device is designed to be used in conjunction with a standard commercial door operator to provide a fully automated door closing system. For use with motorized doors incorporating a reversing electric safety edge, this 120VAC device can power up to 4 smoke detectors and 2 horn/strobes. This system combines state-of-the-art functionality and advanced features typically found on special-order fire door operators.

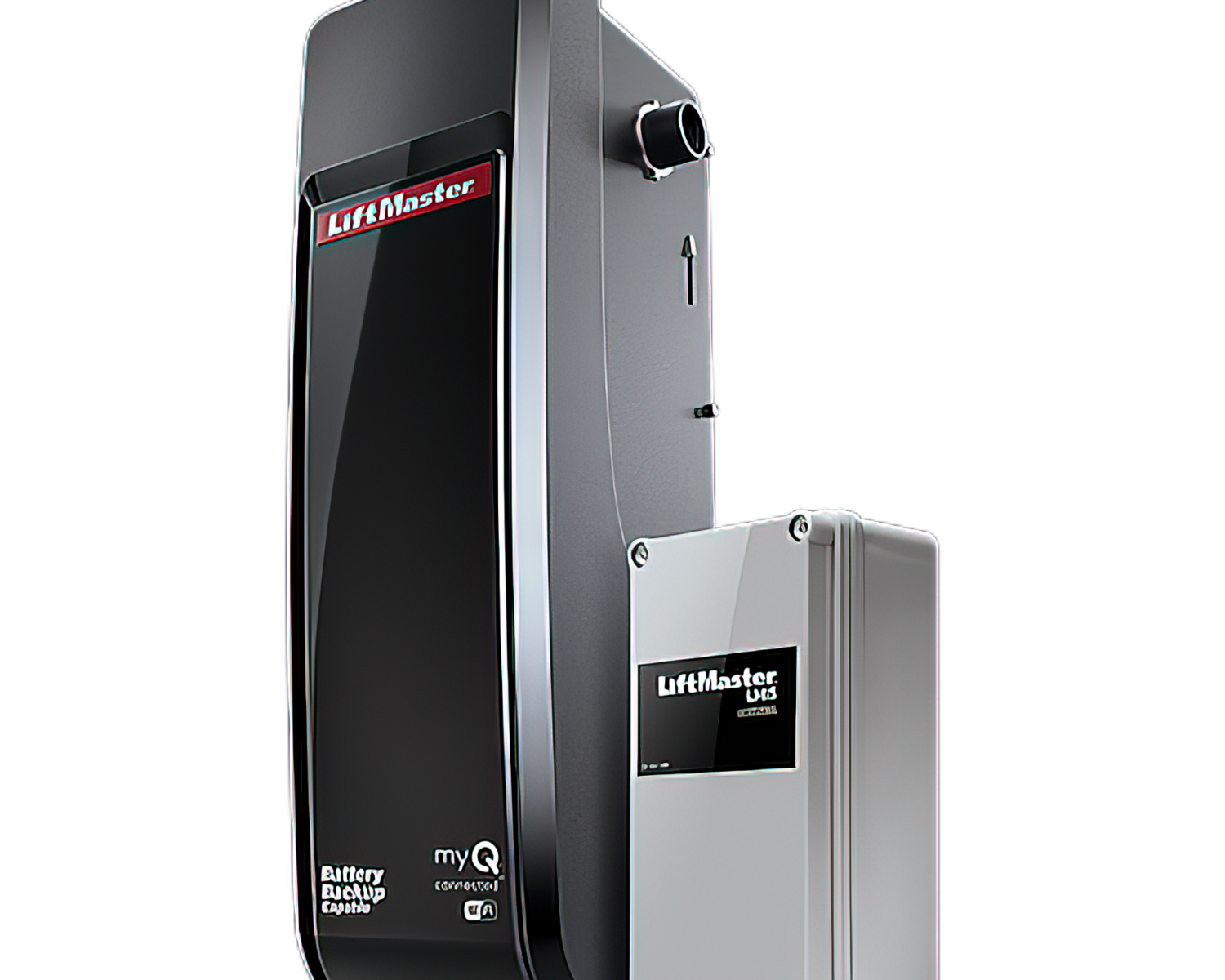

• For full vertical or high-lift sectional commercial and dock doors.
• LMi5 Interface Device monitors up to 5 external sensors around the dock door with myQ® Facility.
• Opens 50% faster in the up direction.
• Easily connect the operator to the facility’s network with built-in Wi-Fi®.
• Annual subscription to myQ Facility, first six months included.

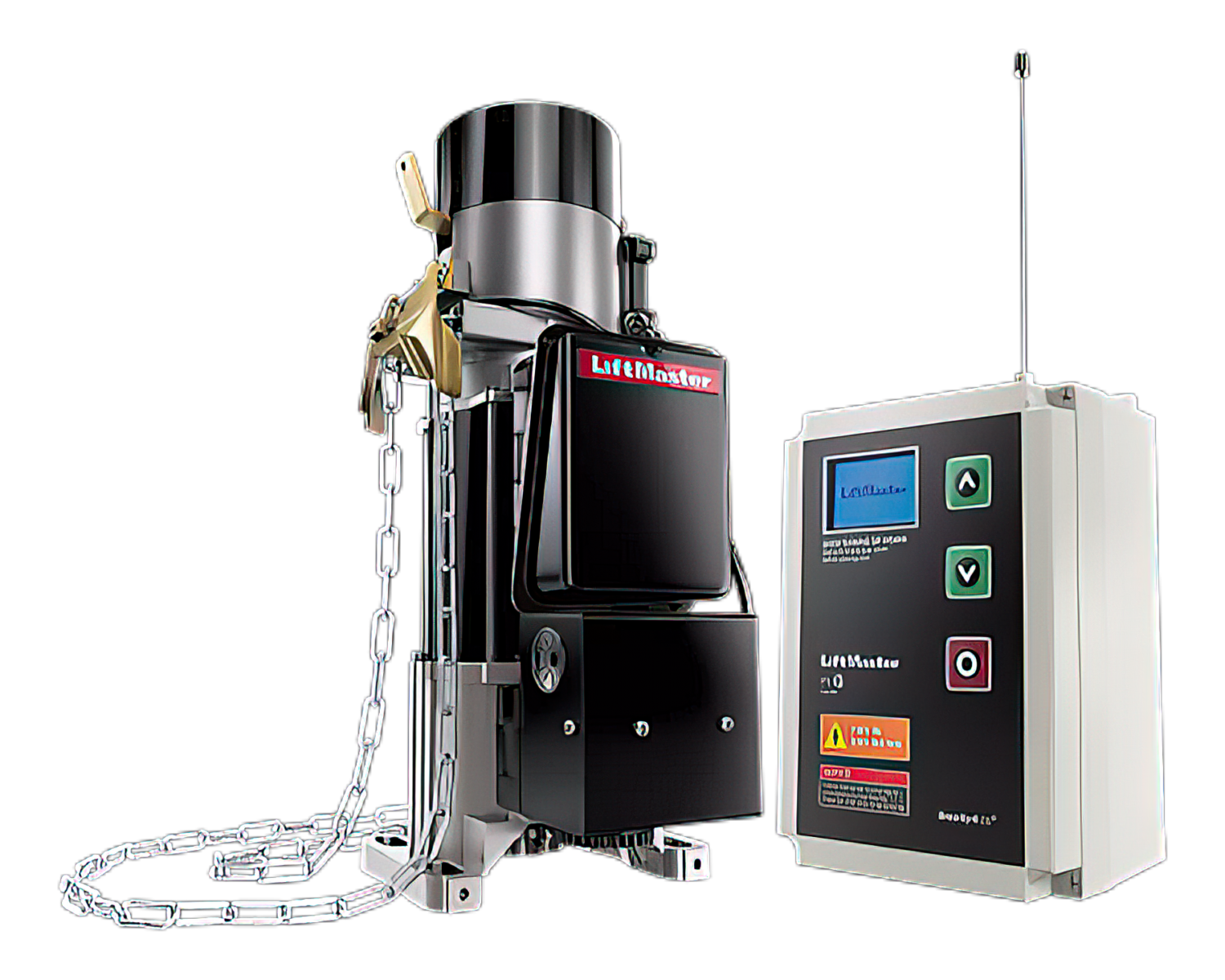

• Front of Hood Mount for Rolling Steel Doors and Grilles.
• Variable speed up to 12”/sec with smooth start/stop feature.
• Floor level controls with intuitive menu driven interface.
