COUNTER SHUTTERS
PROVEN CAPABILITY FOR YOUR APPLICATION.
The 6500 series roll-up doors offer the best in security, flexibility, and appeal. Reduced sized slats provide for smoother operation and a more aesthetically pleasing appearance. End users and specifiers recognize the 6500 Series as state-of-the-art in design, fit, and finish, yet appreciate the simplicity and practicality that define the product.

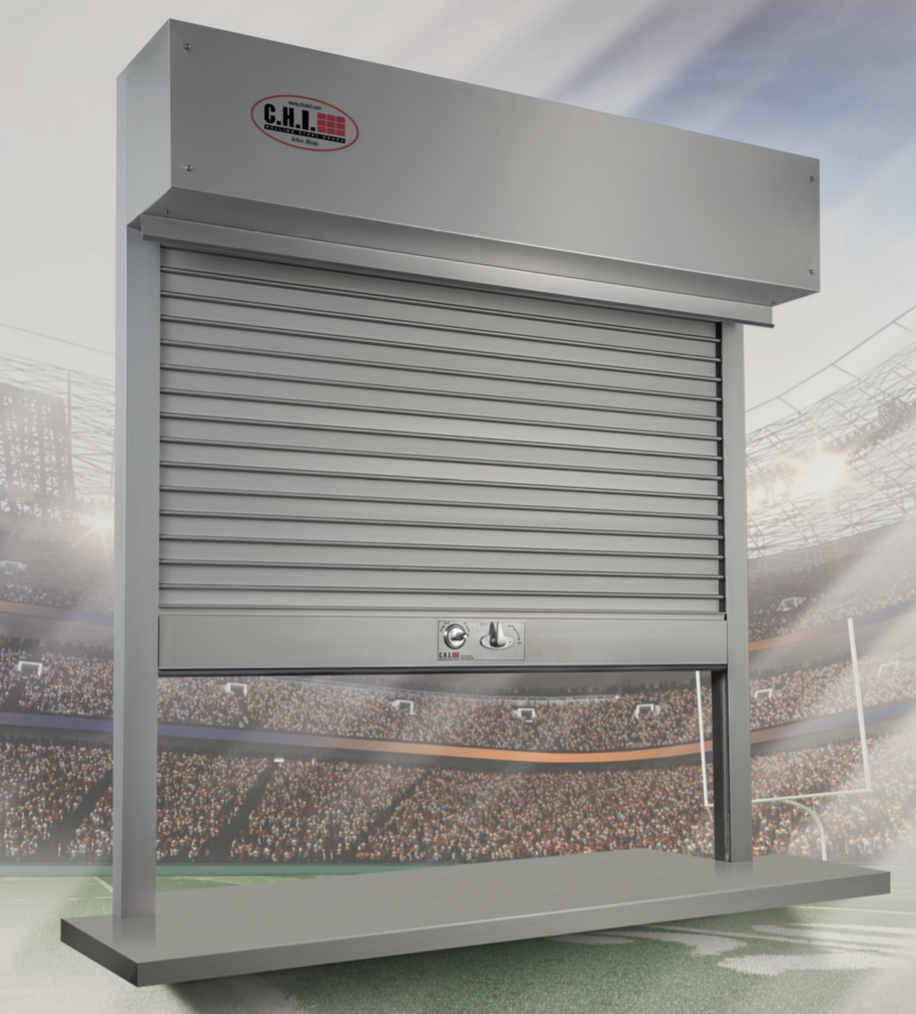

C.H.I. Counter Shutters 6544
The 6500 series roll-up doors o er the best in security, exibility, and appeal. Reduced sized slats provide for smoother operation and a more aesthetically pleasing appearance. End users and speci ers recognize the 6500 Series as state-of-the-art in design, t, and nish, yet appreciate the simplicity and practicality that de ne the product. Powder Coat Select powder coat options from a palette of 188 colors. RAL numbers are provided for each color to ensure that your selection is consistent. Hidden Fasteners Two piece guide system incorporates fasteners concealed by the front guide for a clean appearance and easy installation. Tube Motor Invisible tubular motor operation, awning crank operation, or wall mount motor is optional. Integral Lift Rails Included on the bottom bar provide full-width manual access and simplified lifting.
C.H.I. Counter Shutters 6566
Security and beauty blended with smooth, quiet and effortless operation, the C.H.I. Series 6500 counter shutter is a wonderfully refined, architecturally pleasing enclosure. FEATURES: The Model 6544 features a clear anodized, extruded aluminum curtain and guides. The Model 6522 features a painted steel curtain with clear anodized, extruded aluminum guides. The Model 6566 features a stainless steel curtain with a #4 finish and stainless steel āJā guides. Blemish-free exterior: The Models 6544 and 6522 feature hidden headplates, guides and wall fasteners for a well-blended, architecturally sensitive appearance. Visible seams and shadow lines are eliminated from extruded aluminum guides due to unique joint designs. Soft brush guide runners silence curtain operation and seal out dust and noise. Dual-bottom bar seal assures a soft, non-marring touch down to valuable counter tops. Thumb turn locks are spring assisted, and secure each side of the bottom bar into hidden recesses in the guides. Cylinder locking is optional for each side. Integral lift rails on the bottom bar provide full width manual access and simplified lifting. Invisible tubular motor operation, awning crank operation, or exterior mount motor is optional. Compact in design, the Series 6500 installs into minimum head and side room dimensions.
C.H.I. Overhead Doors ā Rolling Counter Shutters
6500 Series roll-up counter shutter doors offer the best in security, flexibility, and appeal. Available in steel, aluminum and stainless steel material to meet your project requirements. 6500 Series roll-up counter shutter doors offer the best in security, flexibility, and appeal. Available in steel, aluminum and stainless steel material to meet your project requirements. Available Models: Model 6522 ā 22 gauge/painted steel curtain with clear anodized, extruded aluminum guides Model 6544 ā 16 gauge (0.50) clear anodized, extruded aluminum curtain and guides Model 6566 ā 22 gauge stainless steel curtain with a #4 brushed finish and extruded aluminum (standard) or stainless steel (optional) guides Slat Profile: Flat Slat Available Standard Colors: Gray, White, or Galvanized (6522) Clear Anodized (6244) #4 finish for model 6266 Powder coat: 188 RAL powder coat color options (N/A 6566) Mounting Options: Face of Wall Mount: Aluminum & Stainless Steel Guides Between Jamb Mount: Aluminum Guides Operation: manual, invisible tubular motor, awning crank, or exterior mount
