HIGH SPEED DOORS

Regardless of your specific application, C.H.I. offers a premium insulated door product guaranteed to deliver years of dependable operation. Our micro-grooved sandwich models are constructed in a variety of gauges and are available in both polyurethane and polystyrene insulation options for those applications that demand the best in thermal efficiency and value. And, if you’re looking to enhance your buildings aesthetics, our sandwich doors are available powder-coated in over 182 different colors!

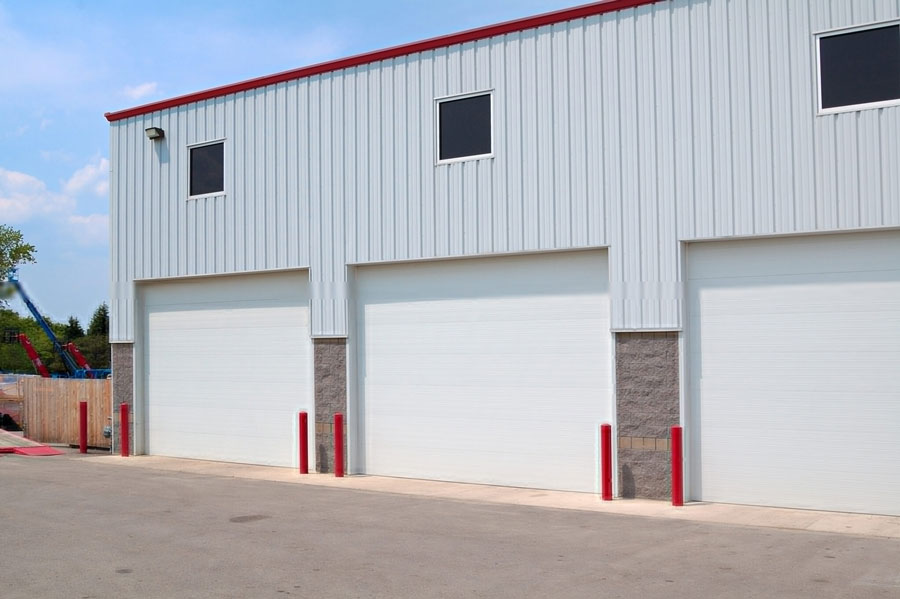

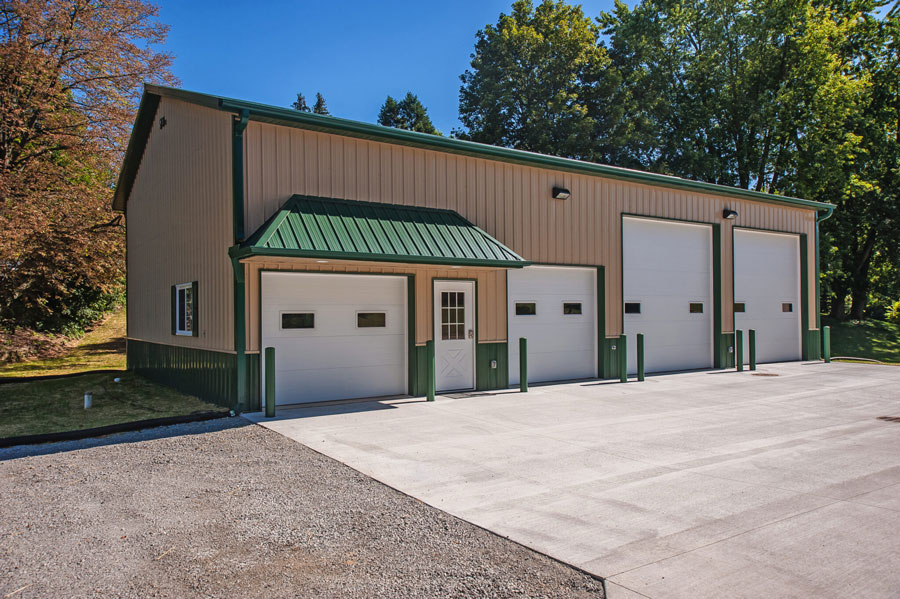

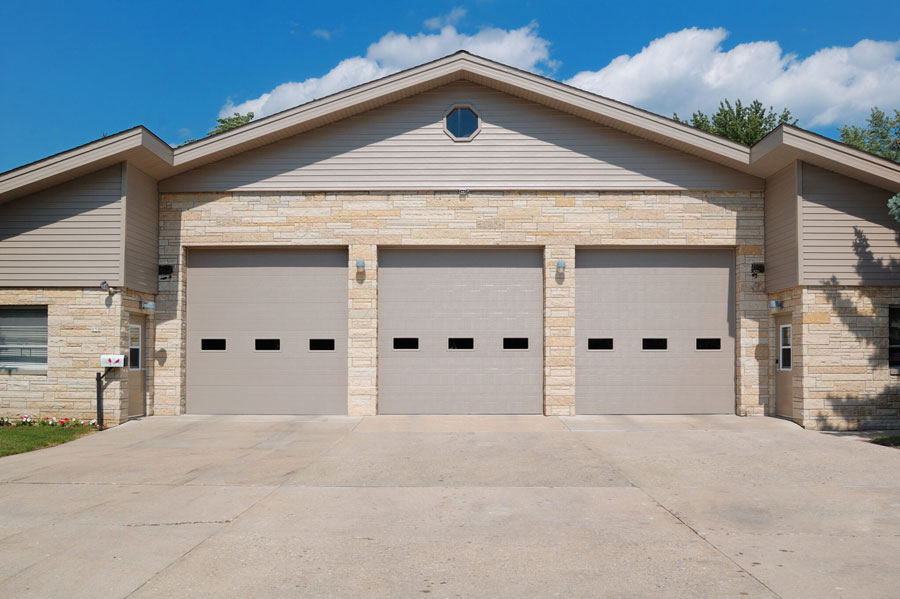

MaxSpeed

32MG_CHI0033

SECTIONS HARDWARE

      • Sections are 1.5” thick
      • Sections include a thermal break to eliminatethermal convection
      • Outside skin features horizontal micro-grooves
      • Concealed steel back-up plates run from topto bottom of each section for secure hardwareattachment
      • Bottom “U” type astragal is a standard feature





TRACKS

  • Tracks are 2” or 3”, as specified
  • Available in bracket mount, angle mount, clipangle mount, 12” radius, 15” radius, high lift, vertical lift, roof pitch, or dual track low headroom

• Package includes 14 gauge and 10 ball rollers, as specified

• 2” or 3” short-stem or long-stem ball bearing rollers

• Heavy duty adjustable top roller brackets<br>

SPRINGS

• Torsion springs are helically wound with stress relieved, oil-tempered wire

• Springs are individually calibrated per door
• Counter-balance torsion shafts are galvanized
for rust resistance

INSULATION TYPE

  • Foamed in place CFC free polyurethane core
  • R-value – 13.68
32MG_CHI0007
32MG_CHI0014
3206-Flyer

MaxDock

32MG_CHI0014

SECTIONS

• Features four evenly spaced micro-grooves that run horizontally across each section.• 2” thick sections are foamed in place with polyurethane for superior R-value• Thermally-broken to eliminate thermal convection• Gasket seal between sections provide for an extremely tight weatherseal• Concealed steel back-up plates run from top to bottom of each section for secure hardware attachment• Bottom “U” type astragal is a standard feature• Available in white

TRACKS

• Tracks are 2” or 3”, as specified• Available in bracket mount, angle mount, clip angle mount, 12” radius, 15” radius, high lift, vertical lift, roof pitch, or dual track low headroom

HARDWARE

• Package includes 14 gauge or 11 gauge hinges, as specified• 2” or 3” short-stem or long-stem ball bearing rollers• Heavy-duty adjustable top roller bracketsSPRINGS• Torsion springs are helically wound with stress relieved, oil-tempered wire• Springs are individually calibrated for each door• Counter-balance torsion shafts are galvanized for rust resistance• High cycle spring options may be specified

INSULATION TYPE

• Foamed in place CFC free polyurethane core• R-value* – 17.54

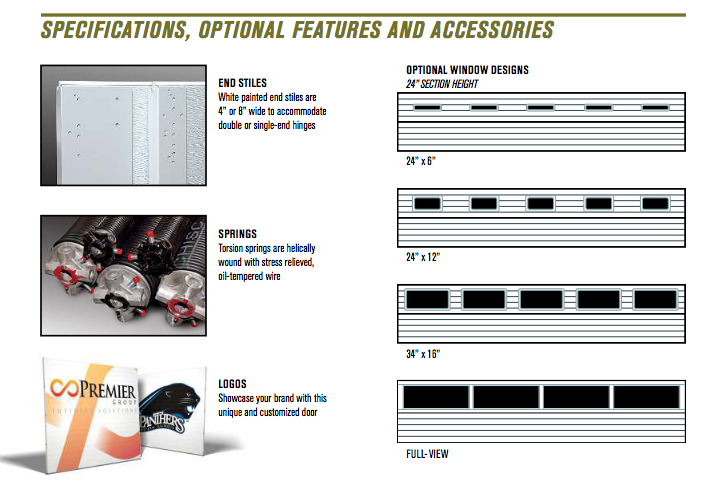

CHI_3212
Screen Shot 2021-12-16 at 5.18.39 PM
3212-Flyer

MaxPro

32MG_CHI0020

LiftMaster’s KPR2000 is a feature-rich keypad and proximity card reader access controller that is simple to install and looks great, making it an excellent choice for both Residential and Commercial applications. Supports a maximum of 2,000 users in multiple access configurations. Supports HID 26-bit and 30-bit Wiegand proximity card formats. Designed for outdoor environments with a sealed, weather proof design allowing you to easily mount anywhere. Provides stand alone or pass-thru operation Latch Mode allows you to hold open a door or gate for an extended period of time. Includes Rapid Programming and Block Enrollment capability, “Add” and “Delete” program cards. Programmable Output Relay with adjustable contact time appropriate for Gate Operator, Commercial Door Operator, Door Strike or Solenoid Lock. Capable of networking two KPR2000s, PPWR to the KPR2000 or to most Access Control Systems.

CHI_3212
chi-planks-3216P-spec-en-0817
3216-Flyer

MaxClean

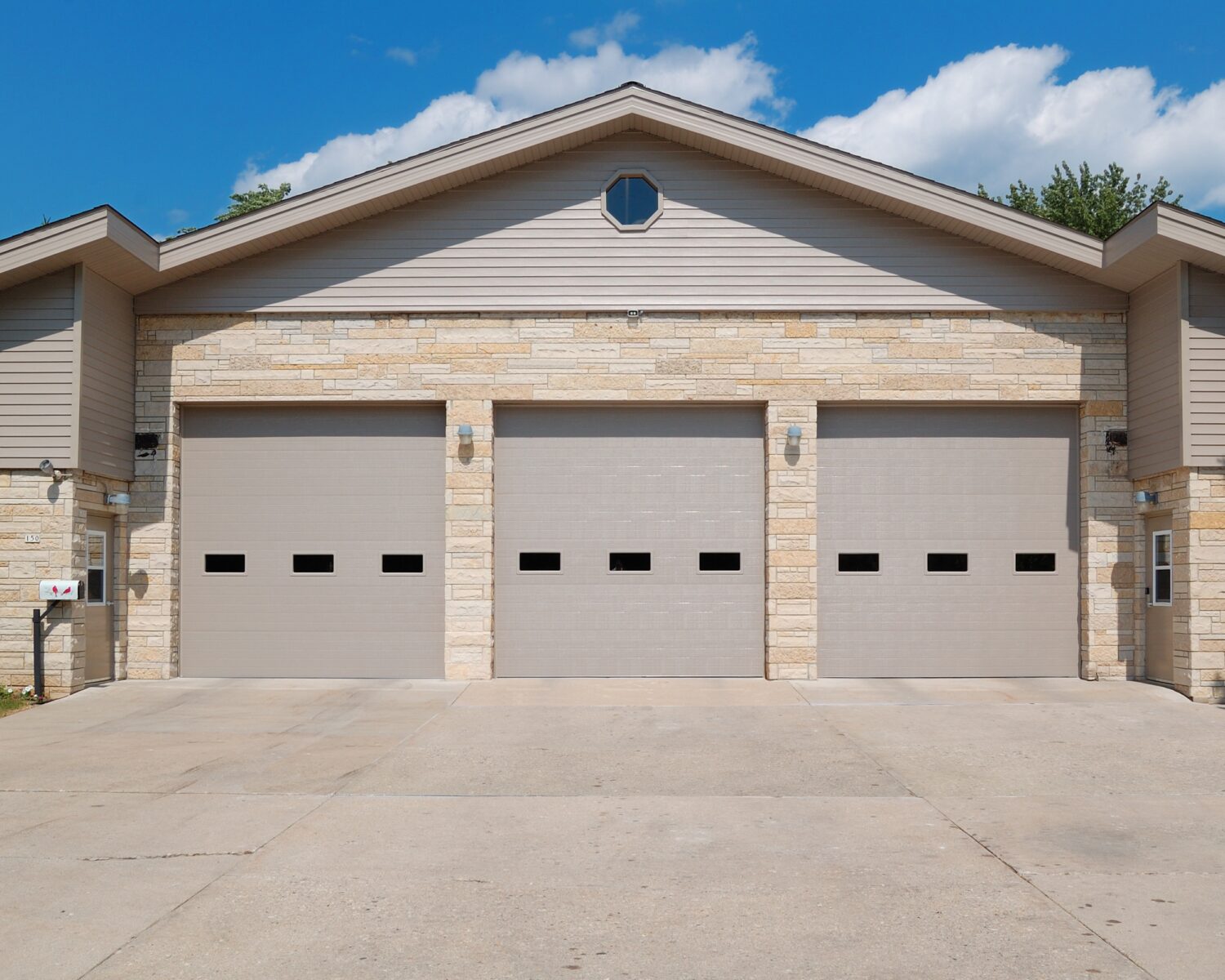

32MG_CHI0007

The Model ASSD is a swift opening and closing motorized strip-door. Strip-door operation is easily adjusted to suit traffic speed. Features May be mounted inside the doorway or within the door jamb Recommended for doorways subjected to infiltration due to temperature differences Fully-lapped fixed strips retain 95% effectiveness Clear plastic strips significantly outlast push-through strips For negative pressure applications under 1 MPH flow-through velocity Can be used between 2 freezers without requiring any heat.

3127-Details
Commercial-3217-Spec
Comercial Door 3217

MaxSeal

32MG_CHI0014

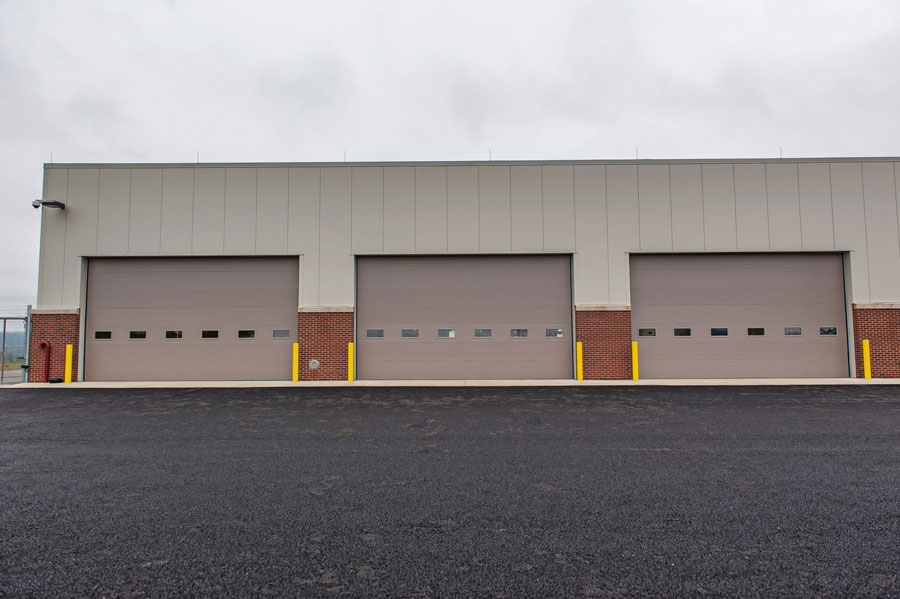

26-GAUGE MODEL 3236, 3” Thermally-Broken Insulated Steel Sandwich Door

SECTIONS HARDWARE

  • Sections are 3” thick
  • Sections include a thermal break to eliminatethermal convection
  • Outside skin features horizontal micro-grooves
  • Concealed steel back-up plates run from top tobottom of each section for securehardware attachment
  • Bottom “U” type astragal is a standard featureTRACKS
  • Tracks are 2” or 3”, as specified
  • Available in bracket mount, clip angle mount,12” radius, 15” radius, high lift, vertical lift, roof pitch, or dual track low headroom

• Package includes 14 gauge or 11 gauge hinges, as specified

• 2” or 3” short-stem or long-stem ball bearing rollers

• Heavy duty adjustable top roller brackets

SPRINGS

• Torsion springs are helically wound with stress relieved, oil-tempered wire

• Springs are individually calibrated per door
• Counter-balance torsion shafts are galvanized

for rust resistance

INSULATION TYPE

  • Foamed in place CFC free polyurethane core
  • R-value – 26.89
Commercial-Insulated-Sandwich-Doors3236_spec
New England Field Shots
3236-Flyer

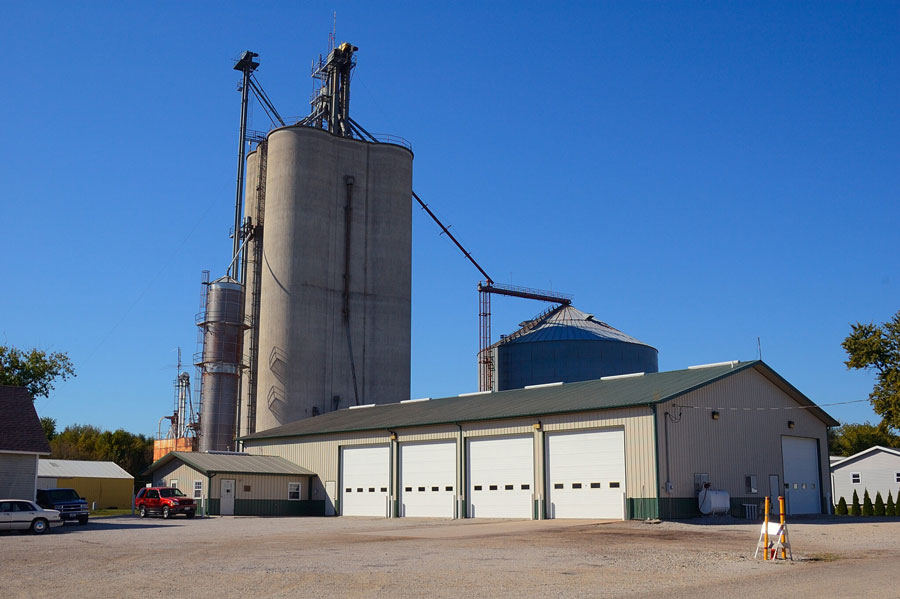

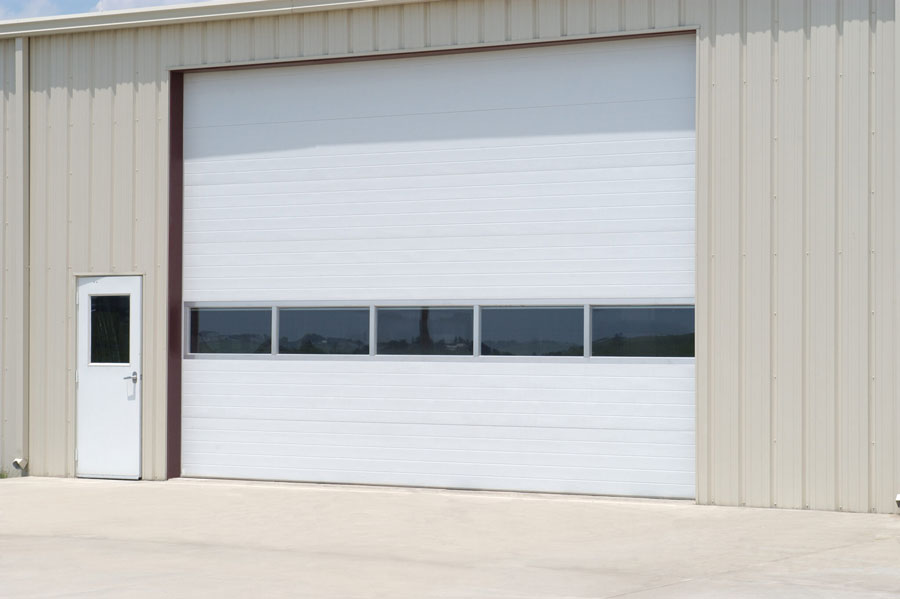

MaxSteel

32MG_CHI0017

… gauge back 2” Thick Section 32’2” x 20’0” Spec Data Sheet 3236 Polyurethane 26.89 26 gauge front / 27 gauge back 3” Thick Section 40’2” x 20’0” Spec Data Sheet Section Drawing BIM Objects Product Flyer 3282 New! 1-13/16” Polystyrene 10.29 24 gauge front / 27 gauge back 2” Thick Section 28’2” x 20’0” 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer 3285 1-13/16” Polystyrene 10 …

32MG_CHI0015
3282_Spec
Comercial Door 3217
