ACCESS CONTROL SYSTEMS

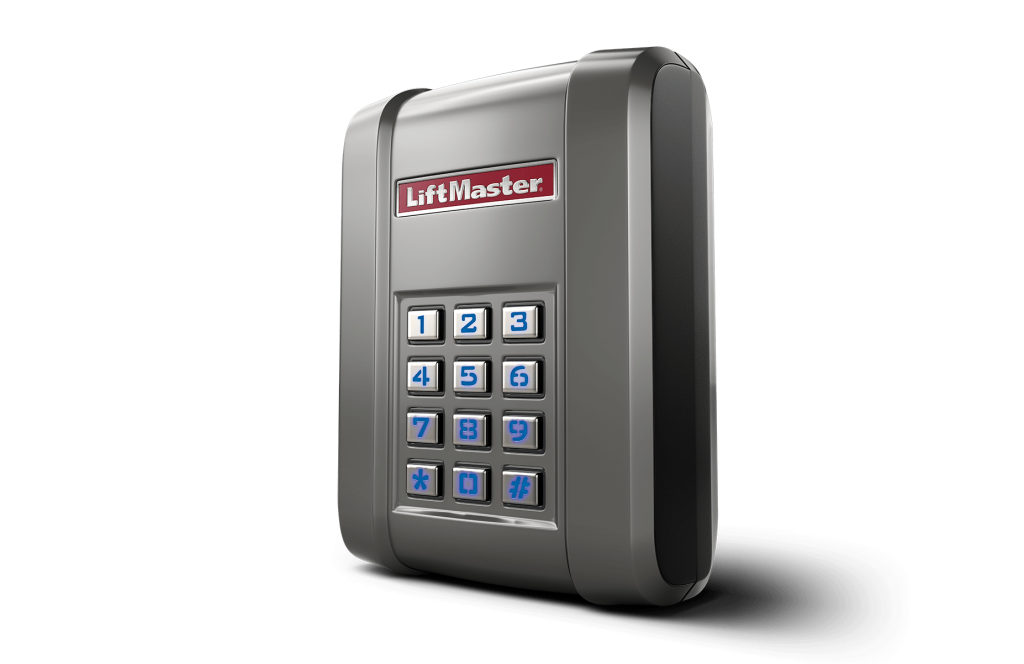

Built to deliver unbeatable performance in tough environments, LiftMaster KPW250 enables a more modern, streamlined access solution that’s simpler than ever to install and use. Perfect for larger commercial applications or gated entrance for a small business. Compatible with Security+ 2.0, Security+, as well as Linear Multi-Code 300 MHz 250 permanent PINs and 10 unique temporary PINs mean flexibility to set up multiple users for commercial settings; unique temporary PINs can be set for 1 to 9 uses Allows for removal of a single PIN while maintaining full access for other users Electronics are fully sealed and meet NEMA 4X water protection requirements An industry-leading 5-year lithium battery improves performance in cold weather (based on 25 activations per day)

Built to deliver unbeatable performance in tough environments, LiftMaster KPW5 enables a more modern, streamlined access solution that’s simpler than ever to install and use. Perfect for residential gate access, as well as smaller commercial door and gate applications. Designed to work exclusively with Security+ 2.0 5 permanent PINs and 10 unique temporary PINs, ideal for residential and small commercial applications; unique temporary PINs can be set for 1 to 9 uses Allows for removal of a single PIN while maintaining full access for other users Electronics are fully sealed and meet NEMA 4X water protection requirements An industry-leading 5-year lithium battery improves performance in cold weather (based on 25 activations per day)

LiftMaster’s KPR2000 is a feature-rich keypad and proximity card reader access controller that is simple to install and looks great, making it an excellent choice for both Residential and Commercial applications. Supports a maximum of 2,000 users in multiple access configurations. Supports HID 26-bit and 30-bit Wiegand proximity card formats. Designed for outdoor environments with a sealed, weather proof design allowing you to easily mount anywhere. Provides stand alone or pass-thru operation Latch Mode allows you to hold open a door or gate for an extended period of time. Includes Rapid Programming and Block Enrollment capability, “Add” and “Delete” program cards. Programmable Output Relay with adjustable contact time appropriate for Gate Operator, Commercial Door Operator, Door Strike or Solenoid Lock. Capable of networking two KPR2000s, PPWR to the KPR2000 or to most Access Control Systems.

The MINIkey is engineered to be rugged, vandal resistant and will enhance your site with a well-crafted look for interior or exterior use. It consists of a brushed, stainless steel faceplate with a recessed, side-lit metal keypad for excellent visibility day or night.

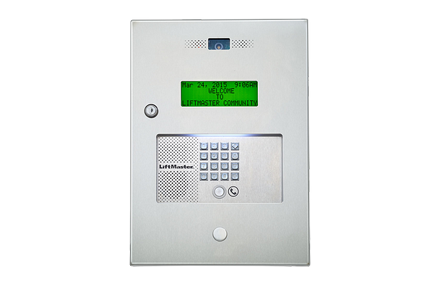

The EL2000SS is a high-capacity telephone entry access control system designed to complement virtually any gated community. It is flexible enough to be used in apartment buildings, condo complexes, office parks and commercial sites.

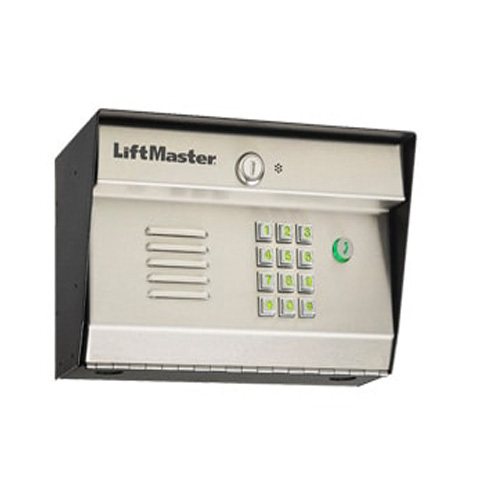

The LiftMaster® Model EL1SS System provides wired communication and secure access control at the gate or door. Hardwired for power and connected directly to your existing telephone line, the EL1SS greets visitors with a high visibility back-lit keypad and attractive styling.

The CAPXLTK back box and trim kit allows you to flush mount a CAPXL unit into a cutout of a wall (or other flat surface). The CAPXLTK is used for new installations or retrofits ELITE Icon26 and Sentex Infinity L systems.

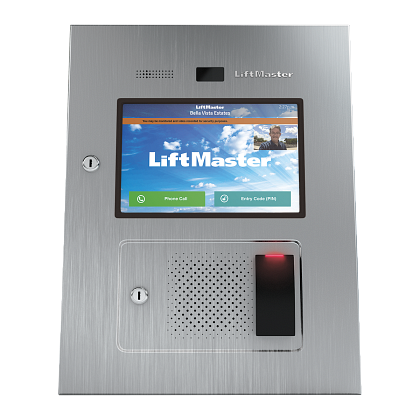

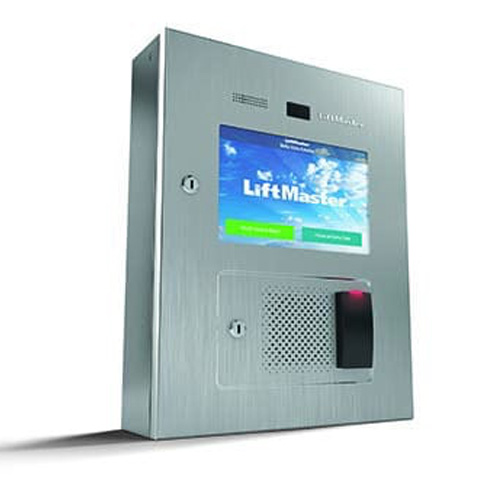

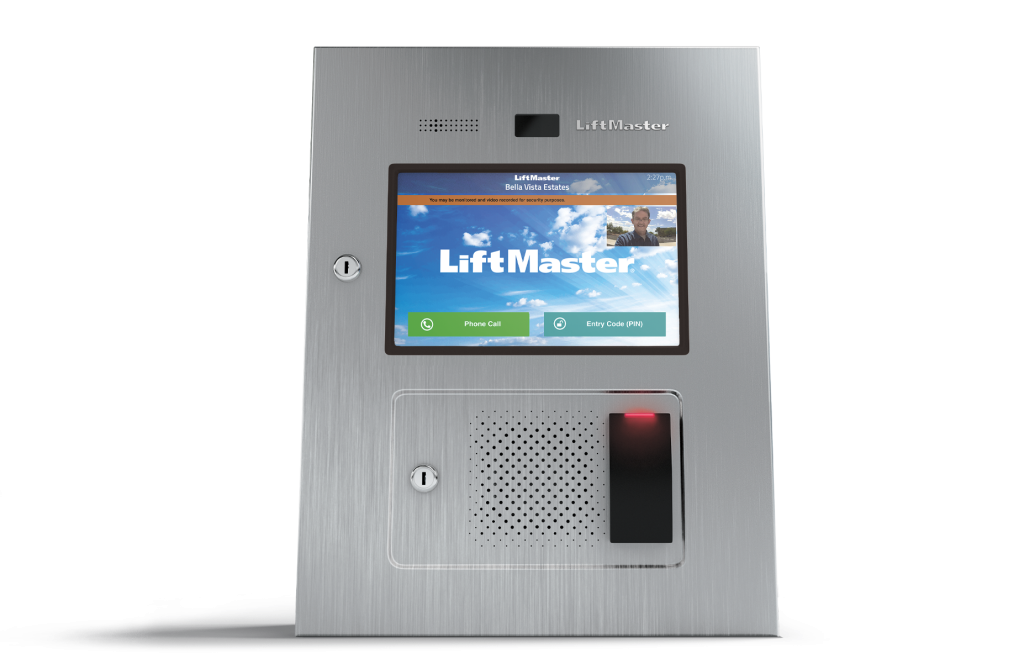

Cloud-based access control for residents and guests. Smart technology. Remote access. Consistent uptime. Whether you need to control multiple entrances or multiple properties, the sleek smart CAPXL with LiftMaster Cloud™ makes it easy to manage day-to-day operations from anywhere. And you can choose the easiest way to connect for voice and LiftMaster Cloud: Wi-FI®, Wired High-Speed, Cellular or DSL.

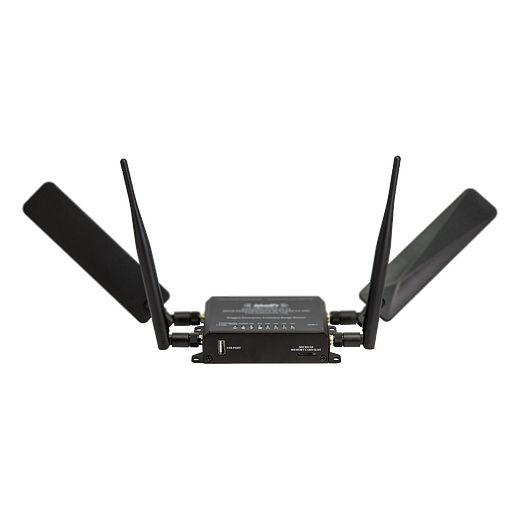

All LiftMaster Openers, Operators, and Systems should be purchased through a Dealer and professionally installed. Use Your Preferred Carrier Compatible with Major US and Canadian Carriers. Plug and Play Easy Setup. Connect CAPXL and CAP2D Anywhere: compatible with SIM cards from most carriers. Sign up with your preferred carrier or add on to your current plan. Avoid trenching and wire pulling for speedy installations. Eliminate plain old telephone service (POTS) and improve reliability.

THE 2" TO LONG RANGE ENTRY SOLUTION DKS offers a full line of Proximity Card Readers in different mounting styles to meet your exact needs. The Readers are sealed in epoxy, making them vandal-resistant and are ideal for both indoor and outdoor applications. AVI (or Automated Vehicle ID) Systems operate in the same manner as Proximity Card Systems, but with longer ranges - up to 25 feet. A typical AVI System places a tag on the vehicle, rather than having the user carry it. In this manner, a gate System will open automatically as the vehicle approaches with a properly credentialed tag.

HIGHEST LEVEL OF SECURITY MicroPLUS® RF products provide you with the highest level of security available. Our coding and encryption schemes are not shared with other producers (such as automobile manufacturers), resulting in Transmitter codes that cannot be duplicated or copied. Model 8040 Receiver This Receiver can be programmed to receive a signal from the MicroPLUS or MicroCLIK Transmitters, which allows the homeowner to choose their type of Remote. The 8040 Receiver is also a low-power draw unit designed specifically for the solar application. It remains in a “sleep” mode until it receives a signal from a Transmitter, thus drawing about 1 milli-amp of power.

COPY THE CODES TO YOUR CAR’S BUILT-IN TRANSMITTERS MicroCLIK® RF Controls are designed to provide convenience and security, but do not have copy-proof encoding schemes found in the MicroPLUS®­ product line. This allows MicroCLIK® Transmitter codes to be copied into the built-in Transmitters found in many luxury automobiles, however we do not guarantee this commonality or functionality. Model 8040 Receiver This Receiver can be programmed to receive a signal from the MicroPLUS or MicroCLIK Transmitters, which allows the homeowner to choose their type of Remote. The 8040 Receiver is also a low-power draw unit designed specifically for the solar application. It remains in a “sleep” mode until it receives a signal from a Transmitter, thus drawing about 1 milli-amp of power.

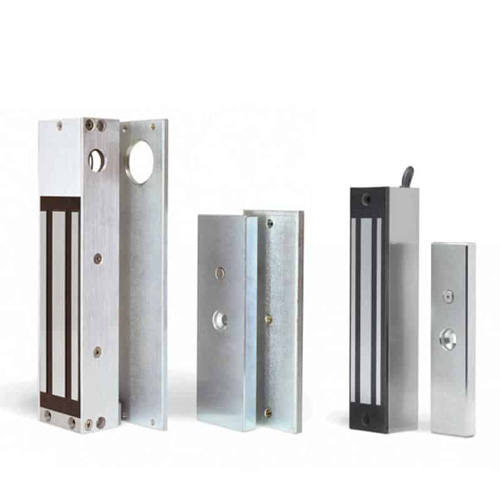

1200 LB OF HOLD – NO MOVING PARTS TO WEAR OUT The DKS series of Gate (DKGL) Locks offers a wide range of high-quality electro-magnetic Locks and Brackets to accommodate most access control locking requirements. Gate Locks are designed for outdoor applications. The 1200 lb (544 kg) Lock provides an electrical enclosure with pre-drilled and tapped conduit holes on the top, bottom, side, and back, providing easy wiring and installation. The 600 lb (272 kg) Lock includes a built-in cable assembly for all wiring connections.

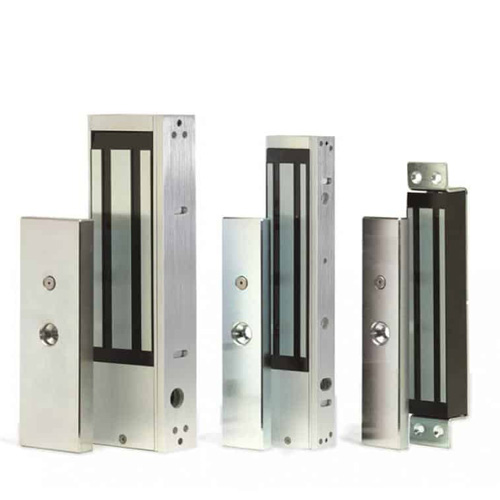

UP TO 600 LB OF HOLD – NO MOVING PARTS TO WEAR OUT The DKS series of Door (DKML) Locks offers a wide range of high-quality electro-magnetic Locks and Brackets to accommodate most access control locking requirements. Door Locks can be ordered in surface or mortise mount styles, with special options such as LED Lock Status Indicators and a built-in timer for automatic lock reactivation after a preset time.

lectric Strikes offer an economical way to secure standard doors and are suitable for most cylindrical door locks. Fail-safe and fail-secure Strikes are available. Electric Deadbolts provide superior security and safety, and include fail-safe operation for doors and gates. Deadbolt options include Lock Sensor, Door Sensor or Lock and Door Sensor models to indicate status of the lock (locked, unlocked) and/or door (open, closed).

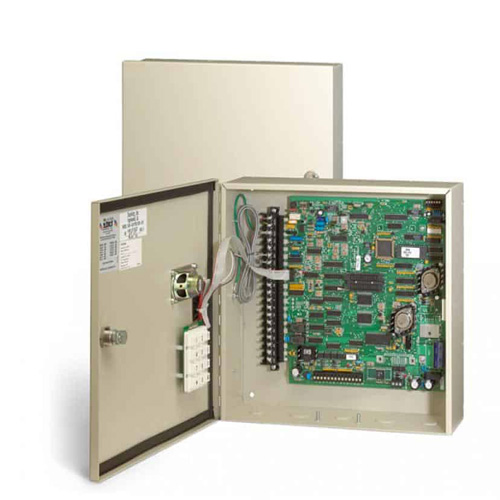

Seamless access for even the most complex facilities. The DKS 1838 Multi-door Access Controller is ideal for small businesses, office buildings, factories, industrial sites, apartment complexes, or for any application that requires access control and reporting capabilities. The 1838 is a 3000 user, 3-door Controller that easily expands to control up to 24 doors with Tracker Expansion Boards. This flexible System allows access control to 8000 Device Codes by means of Cards, Keypads, Wireless RF Transmitters, or with almost any 26-bit Wiegand Device. DKS Remote Call Stations can also be added to the 1838 to provide communication from an entry point to a designated phone.

The 1520 provides users with a full feature, single door, stand-alone Access Control System. The 1520 is available with a built-in Proximity Card Reader, or can be ordered as a single door Controller, allowing the user to add their own 26-bit Access Control Device. The 1524 can be programmed with a handheld programmer or with programming cards, and is available only with a DK Prox Card Reader.

The DKS 1500 Series family of Keypads provides access control for virtually any application where digital code entry is desired, and they are available for stand-alone applications or for connection to an Access Controller. The 1504 model adds an Intercom Substation to the 1506 Series, allowing voice communication via connection to a master Intercom Station. The 1515 smartphone-enabled Keypad is ideal for controlling doors or gates. The simple to install and use DKS Manager and User Apps make this Keypad a sure bet for either stand-alone use or as a Telephone Entry controlled Access Device.

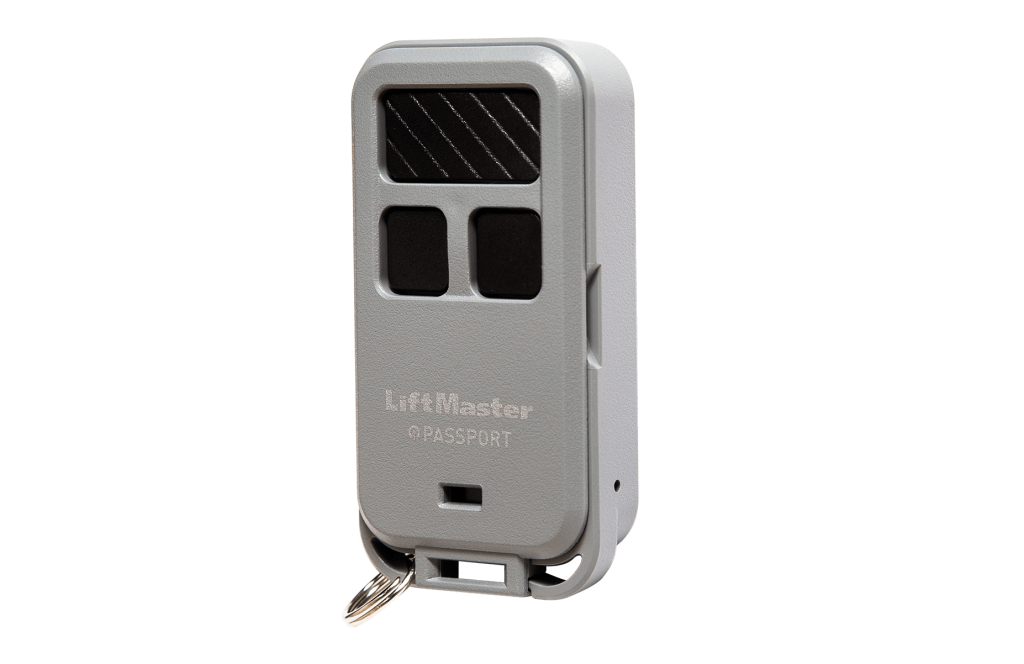

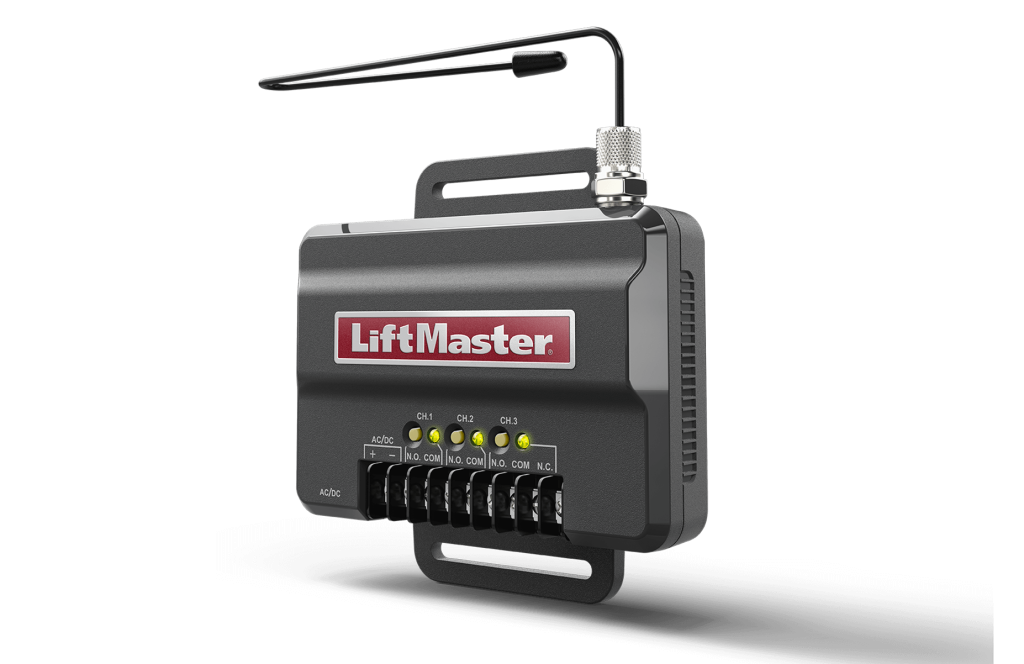

Designed for both gated communities and commercial buildings, the Universal Receiver and accompanying remote controls feature Security+ 2.0® technology Provides convenient access to gated communities, industrial facilities, and commercial sites all with a single transmitter solution Expands to three channels: Channel 1 - 50 remotes, Channel 2 - 20 remotes, Channel 3 - 20 remotes Multiple remote control options available to provide secure access from the safety and convenience of a vehicle Compact design fits most gate and commercial door operators Available in convenient weather-resistant version (model 860LM) Compatible with 811LM, 813LM, and all MAX remote controls Power: 12-24VDC or 12-24VAC Relay Outputs: Output channels - 1 FORM C and 2 FORM A relays Narrow-band on 310 MHz, 315 MHz, and 390 MHz Security+ 2.0® Rolling Code and Encrypted DIP Operational temperature from -35 to 65 degrees C; Storage temperature from -40 to 85 decrees C Compliant with FCC Part 15 1-year warranty
