Commercial Non-Insulated Ribbed Steel Doors

Non-Insulated Ribbed Steel Doors deliver strength and dependability for commercial and industrial spaces. Built for durability, performance, and everyday reliability.

Get A Free Estimate Now
non insulated ribbed steel doors videos

NON-INSULATED RIBBED STEEL DOORS

C.H.I. offers commercial overhead door solutions that provide powerful performance and rugged reliability for a wide variety of commercial, warehouse, and industrial applications. Our pan-constructed overhead doors are available in both insulated and non-insulated versions as well as in a variety of gauges so you can specify the right door for the application you need.

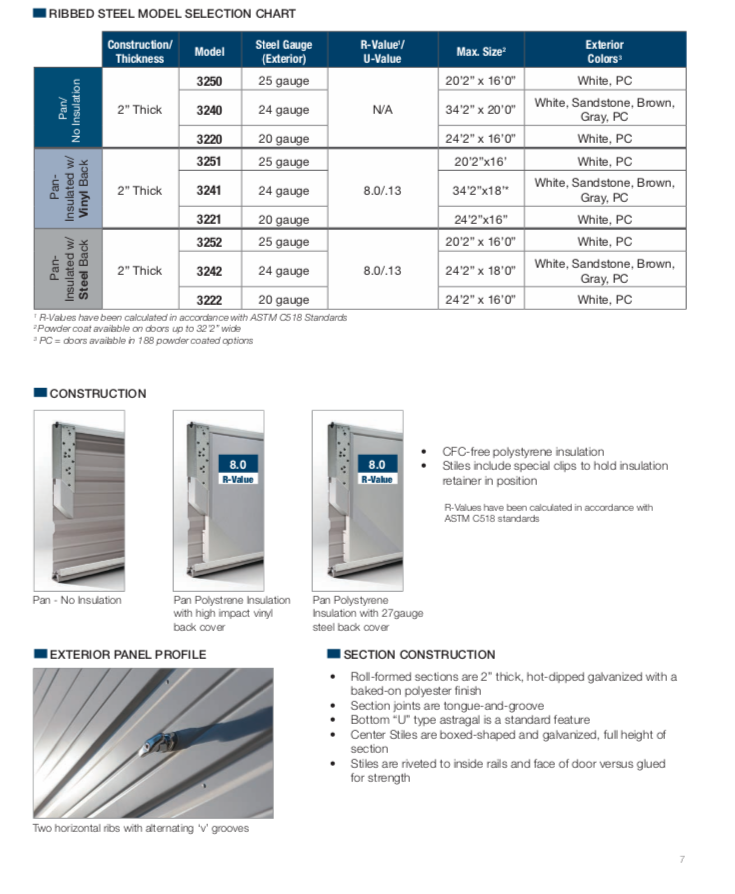

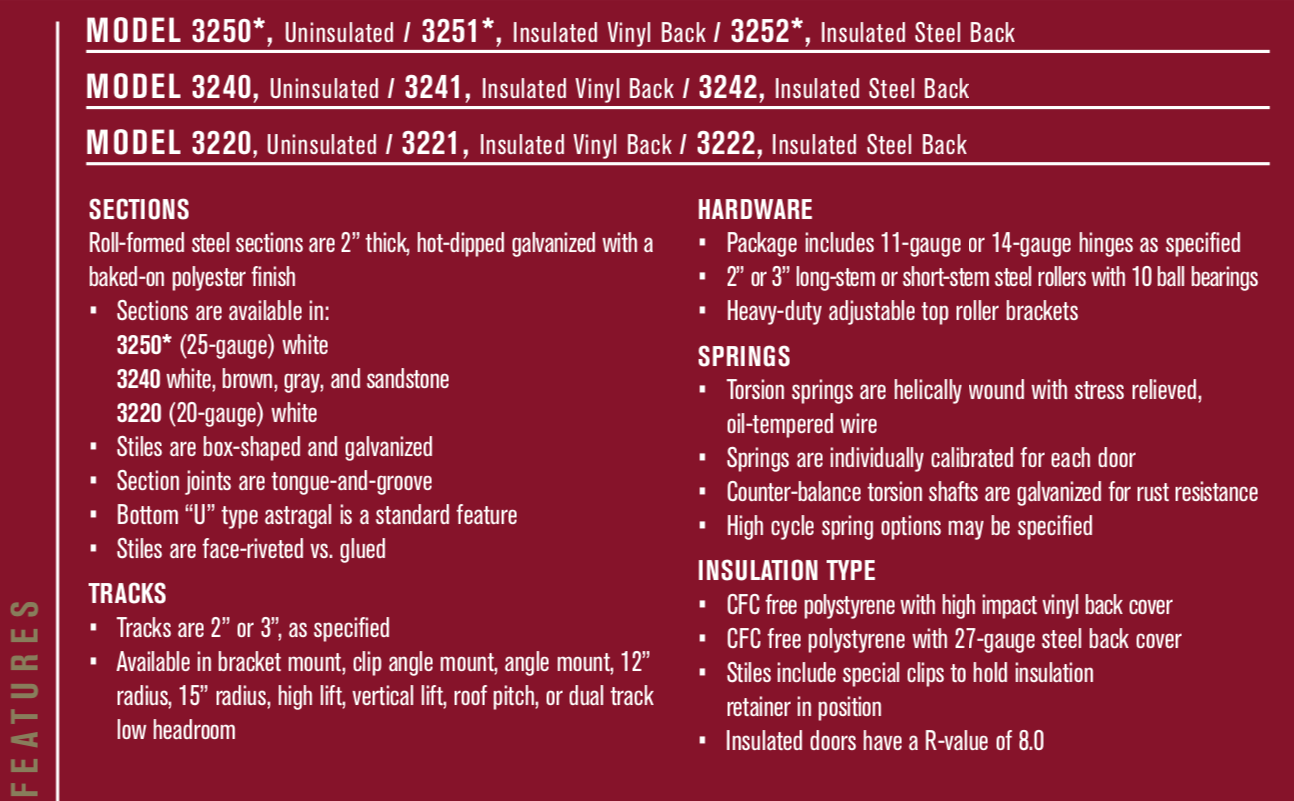

CHI Model 3220

  • Roll-formed sections are 2” thick, hot-dipped galvanized with a baked-on polyester finish
  • Section joints are tongue-and-groove

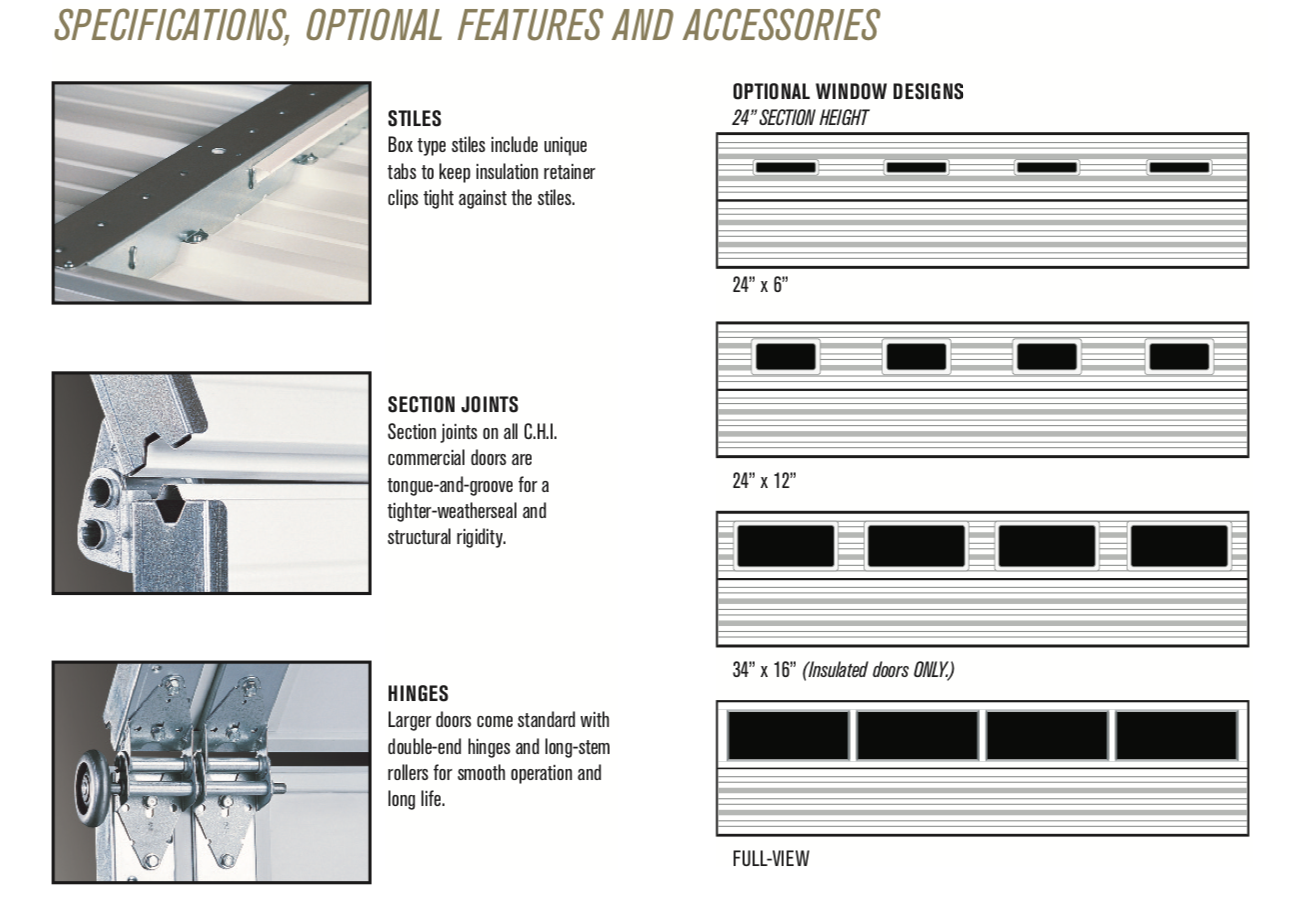

  • Center Stiles are boxed-shaped and galvanized, full height of section
  • Stiles are riveted to inside rails and face of door versus glued for strength

CHI Model 3240

  • Roll-formed sections are 2” thick, hot-dipped galvanized with a baked-on polyester finish
  • Section joints are tongue-and-groove
  • Bottom “U” type astragal is a standard feature
  • Center Stiles are boxed-shaped and galvanized, full height of section
  • Stiles are riveted to inside rails and face of door versus glued for strength

CHI Model 3250

  • Roll-formed sections are 2” thick, hot-dipped galvanized with a baked-on polyester finish
  • Section joints are tongue-and-groove
  • Bottom “U” type astragal is a standard feature
  • Center Stiles are boxed-shaped and galvanized, full height of section
  • Stiles are riveted to inside rails and face of door versus glued for strength
