Garage Door Cable Replacement From Apex Overhead Door
If your garage door is crooked, stuck, or has a loose cable, it may need replacement. We fix cable issues before they cause bigger damage.
Garage Door Cable Replacement

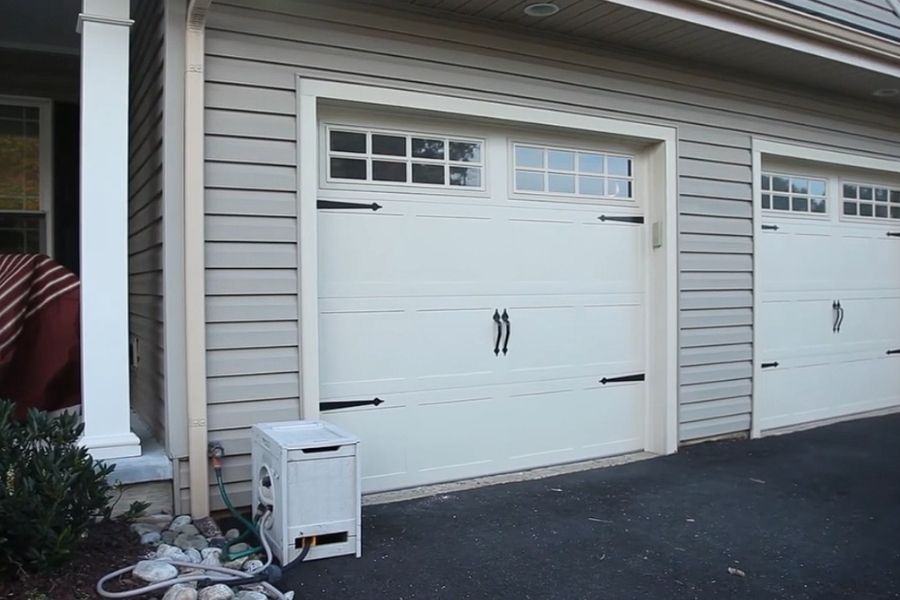

If your garage door suddenly looks crooked, won’t close evenly, or you see a loose or frayed cable along the side, it’s usually a sign the lifting system has lost tension on one side.
The mechanical reality is that once a cable stops carrying load evenly, the entire door begins shifting out of balance. If you’re dealing with that, call Apex Overhead Door at (215) 942-2739 and we’ll take a look before it turns into a larger failure.
Why Garage Door Cables Fail Even When Nothing Else Seems Wrong
Garage Door Cables Don’t Typically Fail All At Once.
They wear down gradually from constant tension, friction, and oxidation. Early warning signs often include small strands separating from the cable, a rhythmic clicking during the first part of travel, or a faint white powder forming near the bottom loop. That white residue is zinc oxidation, and it acts like an abrasive, slowly grinding down the cable strands from the inside.
The cables themselves don’t create lifting force—they transfer the force from the spring. When the spring begins to lose tension or when resistance builds in the system, the cable starts to slacken and loses its ability to track cleanly along the drum. We usually see this when the door still moves, but one side reacts slightly differently than the other. What happens next is the cable begins to misalign, and once that starts, it rarely corrects itself.
Ready to Upgrade Your Garage? Contact Us Today for Expert Garage Door Solutions!
At Apex Overhead Doors, we take pride in offering a full range of professional garage door services to meet all your needs. Whether you’re looking for a brand-new installation, expert repairs, or maintenance, our skilled team is here to help.
What Actually Changes When A Cable Loses Tension Or Fails
The cables are responsible for keeping both sides of the door moving together. When that connection is disrupted, the system becomes unstable immediately.
Loss of even lifting
Each side of the garage door depends on its own cable. When one cable loses tension or fails, the door no longer lifts evenly. The mechanical result is uneven load distribution. One side rises while the other lags, creating a twisting force across the door. In most garages, the next failure point is the track when it begins to bend or spread outward under lateral pressure.
Cable slipping off the drum
When tension drops, the cable can slip out of the grooves in the drum. What happens next is improper wrapping or “bird-nesting,” where the cable tangles around the shaft instead of spooling correctly. At that point, the door may appear twisted or stuck at an angle inside the opening. Once this happens, the system cannot operate normally. If your door is uneven or the cable looks out of place, call (215) 942-2739 and we’ll check what’s happening before more damage occurs.
Sudden loss of support
If the cable snaps completely, one side of the door loses all support. The full weight shifts unevenly across the system. This is one of those problems that looks manageable until the door binds or drops on one side. Once that happens, it’s no longer safe to operate.
Where Cable Problems Start Causing Bigger Damage
Cable Issues Trigger A Chain Reaction Throughout The System.
The mechanical reality is that once tension is lost, other components begin absorbing forces they weren’t designed to handle. Rollers are forced out of alignment, and tracks begin to bend under uneven pressure. At the same time, the opener continues trying to lift the door.
When it encounters an unbalanced load, internal components like the nylon drive gear can strip while the motor continues running without actually lifting the door. There’s also stress at the bottom bracket connection. Corrosion or wear at that point weakens the cable loop. Once it fails, the cable separates completely and the door can no longer stay supported on that side.
Why Cable Replacement Requires Resetting The Entire System
Garage Door Cables Are Not Independent Components—They Are Part Of A Tensioned System Tied Directly To The Springs.
The mechanical reality is that any cable adjustment requires the spring tension to be properly released and reset. Without doing that, the system remains unstable. DIY attempts often fail when homeowners try to re-thread a cable while the spring is still under load. That leads to uneven lifting or immediate re-failure. There is also a safety issue at the bottom bracket. That bracket is directly connected to the spring system and is under hundreds of pounds of torque. If those bolts are loosened while the system is under tension, the bracket can release with enough force to become a high-velocity projectile.
The bottom bracket is the anchor point for the entire spring system. It is under hundreds of pounds of tension. Never attempt to loosen the bolts on this bracket yourself—this is where the most serious garage door injuries occur.
Why Cables Are Replaced In Pairs, Not Individually
In most cases, both cables have gone through the same number of cycles and have experienced the same wear conditions. The mechanical reality is that if one cable has failed, the other is already weakened. Replacing only one side creates imbalance in how the door lifts and distributes load. This is why cables are typically replaced in pairs—to restore even tension and prevent the system from drifting back into failure. There’s also a difference in cable construction. More flexible 7×19 strand cables are often used because they conform better to the drum grooves and are less prone to developing memory kinks compared to stiffer 7×7 cables.
Cables are one of the most affordable parts of your door. Replacing them at the first sign of fraying (the “silver hairs”) can save you from a $1,000+ emergency where the door falls and crushes the tracks or panels.
We Offer Garage Door Services In Pennsylvania and Surrounding Areas
What Tends To Happen If Cable Damage Is Ignored
Once A Cable Begins To Fail, The System Becomes Progressively More Unstable With Each Cycle.
The mechanical progression is predictable. Frayed strands begin catching on rollers or tracks, increasing resistance. What happens next is the cable snaps completely or jumps off the drum. At that point, the door can wedge diagonally in the opening or come off track entirely. Tracks may bend, rollers may fail, and the system can no longer operate safely. Over time, what could have been a straightforward cable replacement turns into a repair involving multiple components at once.
The moment homeowners realize the cable has failed
There’s usually a clear trigger. The door becomes visibly uneven, gets stuck halfway, or refuses to close properly. In some cases, the cable can be seen hanging loose or wrapped around the shaft. This is one of those problems that looks confusing at first—until the pattern becomes obvious. Once the door is no longer moving evenly, the system has already lost balance. If you’re in that situation, call (215) 942-2739 and we’ll get the cable replaced and the system back in proper alignment.
Common Questions About Garage Door Cable Replacement
How do we know if the cable is the problem?
Visible fraying, slack, or uneven movement are strong indicators the cable is failing or has already failed.
Can we still use the door if one cable is damaged?
The door may still move slightly, but it becomes unstable and unsafe to operate.
Why does the door look crooked all of a sudden?
That usually means one side has lost tension due to a cable slipping or breaking. If one side of your door is higher than the other, do not try to force it closed. This usually means a cable has “bird-nested” or jumped the drum. Forcing it can bend your tracks or cause the door to fall out of the opening entirely.
What happens if the cable comes off the drum?
The door can jam or stop moving entirely, and the cable may tangle around the shaft.
Why is my door making a clicking/slapping sound?
This is often a frayed cable strand hitting the metal drum or a pulley every time the door rotates. It’s the “canary in the coal mine”—your cable is telling you it’s about to snap.
Get the door back to moving evenly again
If your garage door is uneven, stuck, or showing signs of cable damage, it’s not something that will correct itself. The mechanical reality is that once tension is lost, the system continues to degrade with each cycle. Call Apex Overhead Door at (215) 942-2739 and we’ll replace the cables and restore proper balance to the system.
